In this section, we show how to use the performance simulator described above to prepare an observation. From the CAM Central Program, we have drawn four cases using the following observing modes: single pointing (CAM01), raster scan (CAM01), beam-switching (CAM03), and CVF scan (CAM04) observations.

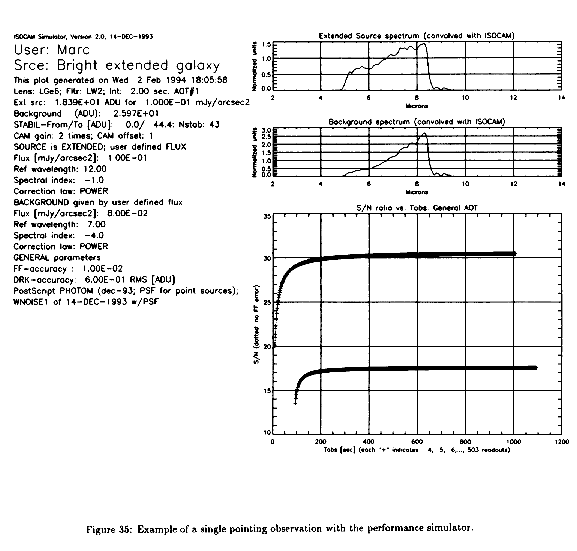

Figure: Example of a single pointing observation with the performance
simulator.
