The SW array presents a time lagged response after a flux step (up
or down). The lag depends on the number of readouts of the array,
and is a function of both the initial and the final accumulated
charges. Different pixels have a slightly different response to a
given flux step, resulting in a degraded flatness of the images
after the step. Figures
and
shows 6 examples of responses after flux steps with
= 2 sec. For each example, as a function of the readout number, the
upper panel shows the average pixel signal, and the lower panel
shows the distortion of the image compared to the final reference
image obtained by averaging the 10 last elementary images of the
record. The difference between the running image and this final
reference is flat-fielded using the difference between the final
reference and the reference obtained before the flux step. The rms
dispersion is plotted in two cases: i) single elementary images
(dots), and ii) for 11 consecutive images averaged (crosses). This
dispersion can be compared in the two cases to the corresponding
noise that would be expected in stabilized regime (full and dotted
lines, respectively). For all the examples shown, the number of
readouts needed to return to the nominal flat-field exceeds 20.
Consequently, for every use of the SW array, it is recommended to
let the signal stabilize for a number
of
readouts, before the
exposures useful fo the
observation (of course, the data product will also include the
stabilization exposures, which may be used, in the end, to improve
the accuracy of the observation).

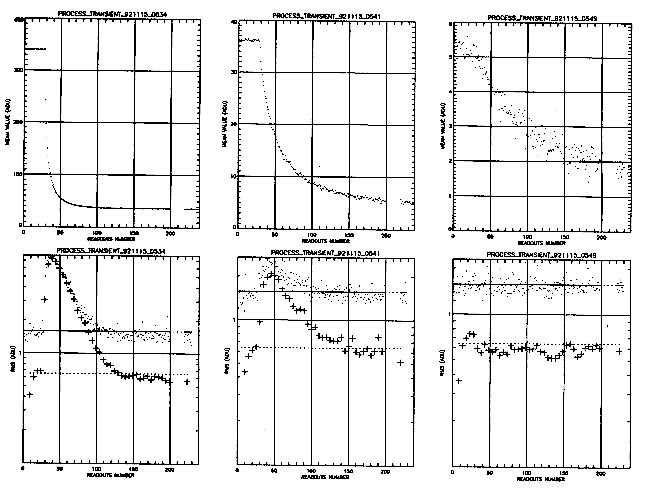

Figure: Examples of stabilization of the SW array after a flux
step (upper panels)

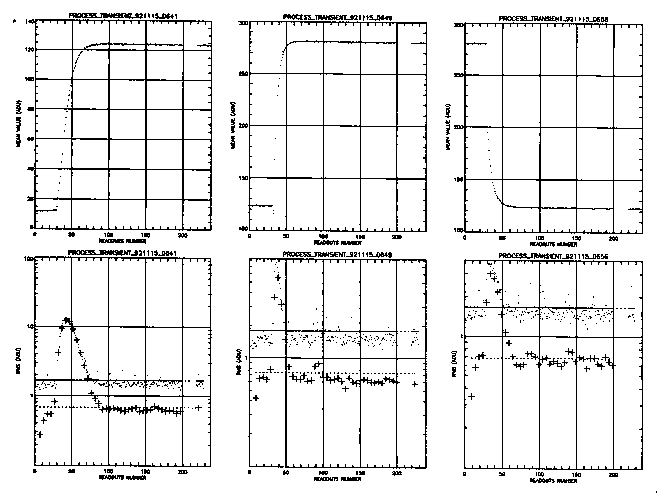

Figure: Examples of stabilization of the SW array after a flux
step (lower panels)
Figure gives using the
photometric criterion that the average pixel has reached its final
reference level within 10 % of the flux step amplitude. is plotted as a function of the destination level TO for
the initial FROM levels 3, 10, 30, 100 and 300 ADUs.
The results in Figure are based on the analysis of
50 cases during the calibration of the flight model. They have been
fitted with the following function:
Where:
FROM is the stabilized signal level in ADUs before the step (
).
TO is the stabilized signal level in ADUs after the step.
= 269,
= 0.24,
= 0.67.
The experimental numbers are within 30 % of this fit.
