Data for the CVFs and the filters

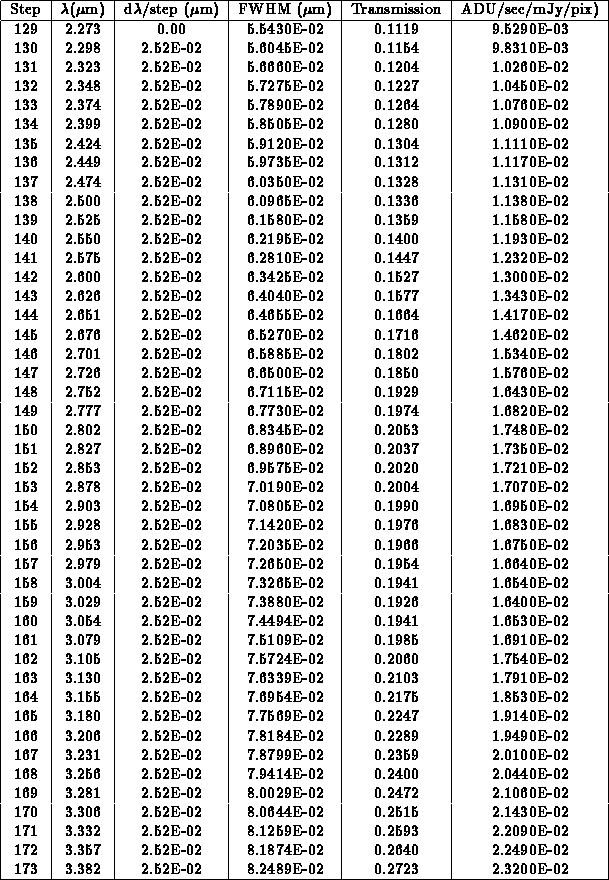

Table: SW CVF data and system response

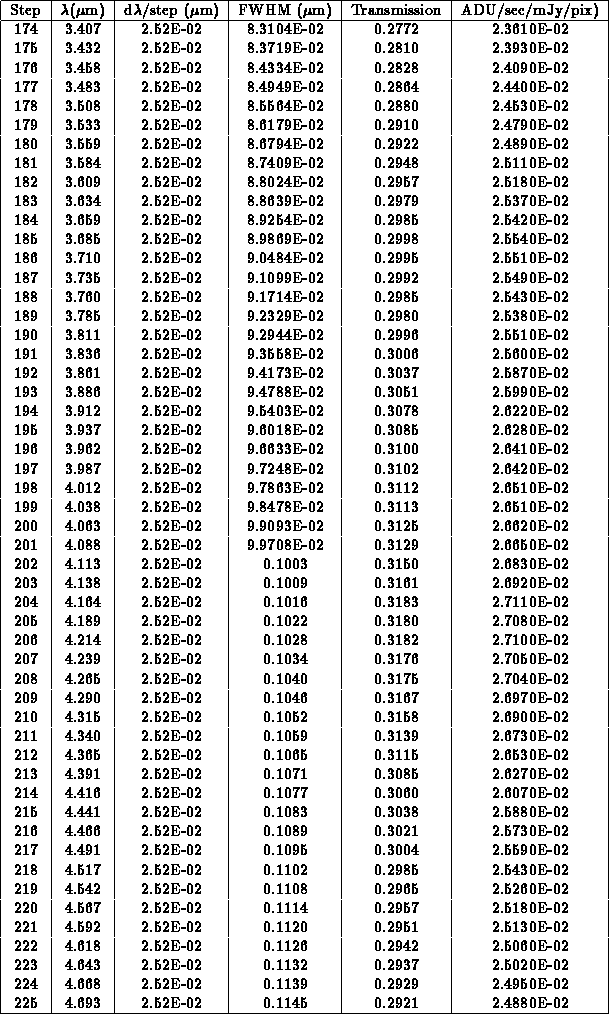

Table: SW CVF data and system response.(CONTINUED-1)

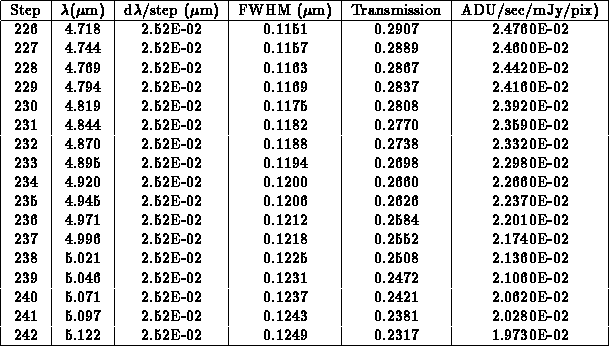

Table: SW CVF data and system response.(CONTINUED-2)

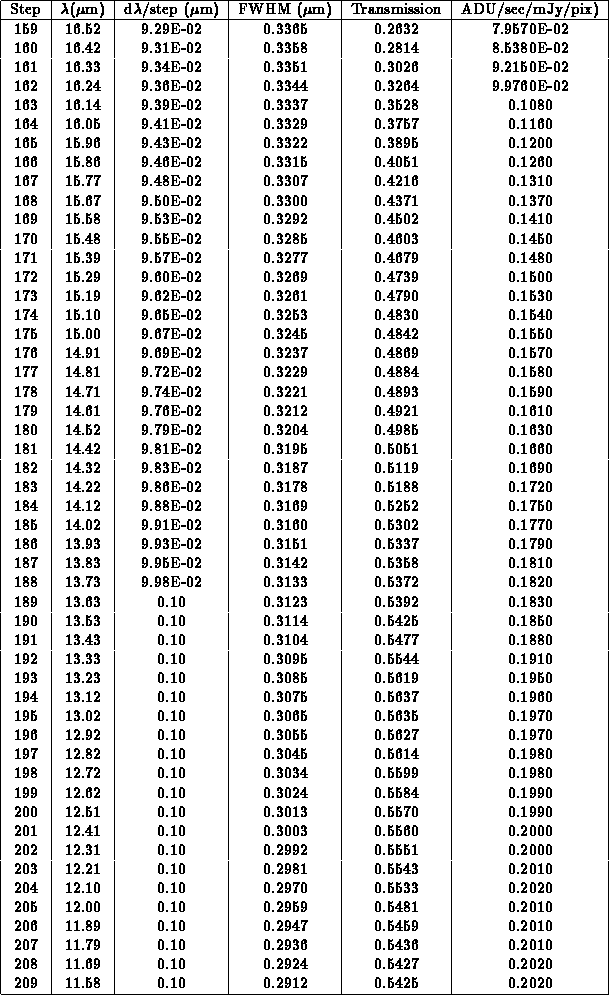

Table: LW CVF1 data and system response


Table: LW CVF1 data and system response (CONTINUED)

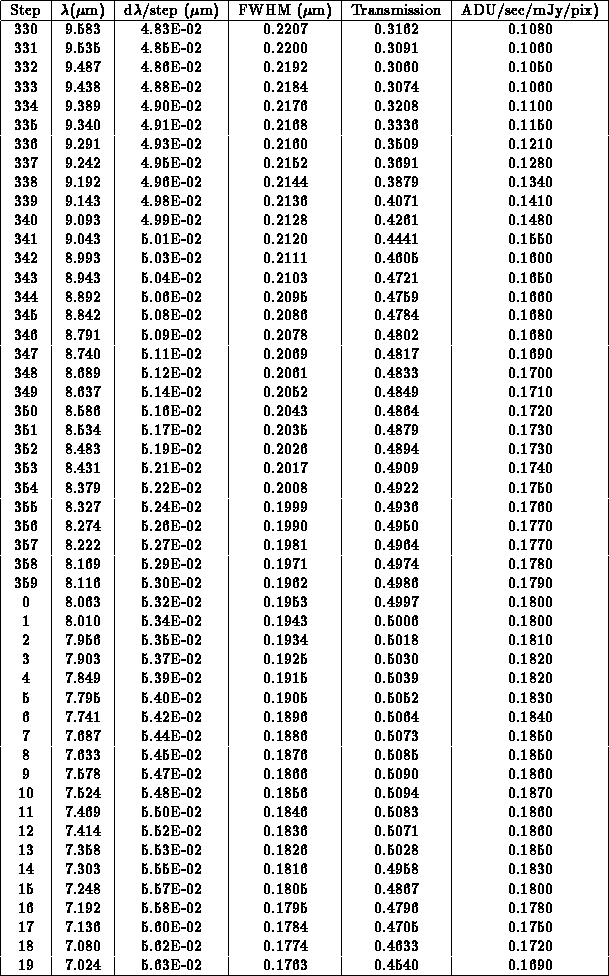

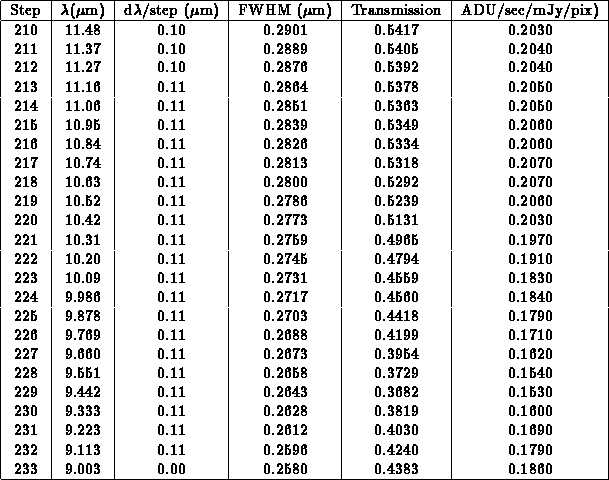

Table: LW CVF2 data and system response


Table: LW CVF2 data and system response.(CONTINUED)


Table: SW filters system response


Table: LW filters system response

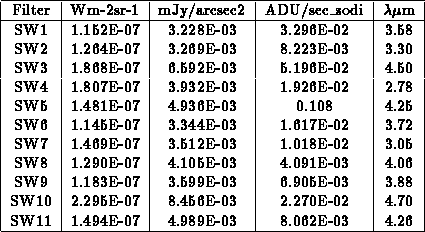

Table: SW filters zodiacal background signal for PFOV = 6 arcsec

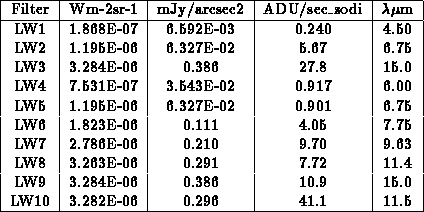

Table: LW filters zodiacal background signal for PFOV = 6 arcsec
