Comparisons of source counts for the Second Incremental Release Point Source Catalog reference fields discussed in VI.6 to the SKY4 model. The sources were extracted for a 1°-radius field around the reference point. The SKY model results, which are returned as d(log N)/dM per square degree for one magnitude bins, sampled ever 0.25 magnitude, have been scaled to account for the larger field (3.1416°) and 0.25 magnitude bins sampled every 0.25 magnitudes.
The fields examined were:
|N | RA | Dec0 | glon0 | glat0 | radius | nsrcs | | | c | c | d | d | d | i | 1 12h50m00s +15d00m00s 301.28 +77.87 3600.0 2989 2 10h42m00s +21d00m00s 217.58 +59.91 3600.0 4406 3 09h16m00s +21d00m00s 207.79 +40.80 3600.0 6193 4 08h17m00s +21d00m00s 202.27 +28.80 3600.0 9403 5 06h56m00s +27d00m00s 188.97 +12.87 3600.0 27134 6 06h20m00s +21d00m00s 190.75 +2.85 3600.0 50724 7 04h45m00s +27d00m00s 175.09 -10.47 3600.0 27333 8 04h35m00s +15d00m00s 182.10 -21.35 3600.0 11520 9 02h21m00s +21d00m00s 149.45 -37.22 3600.0 6209 10 19h30m00s +21d00m00s 55.03 +0.91 3600.0 273545

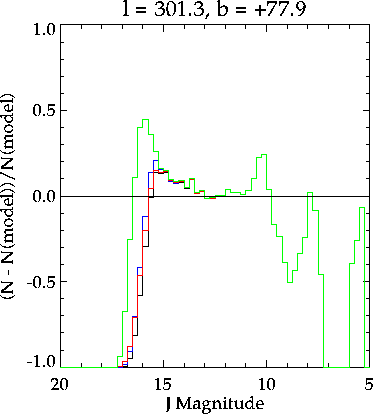

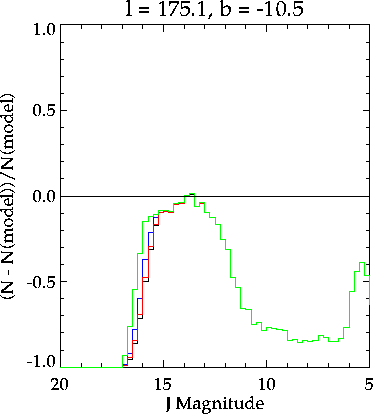

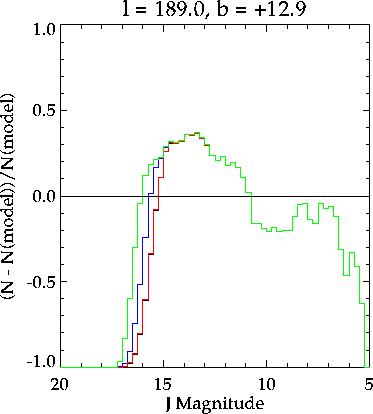

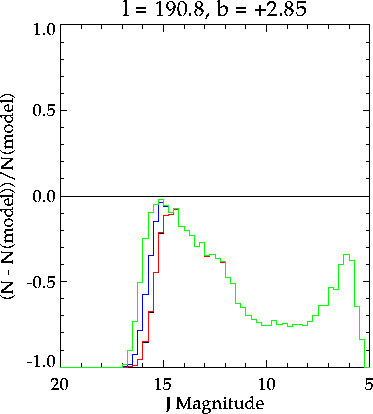

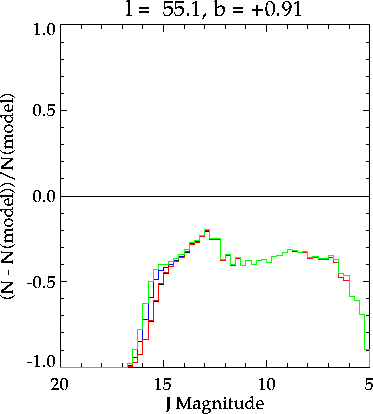

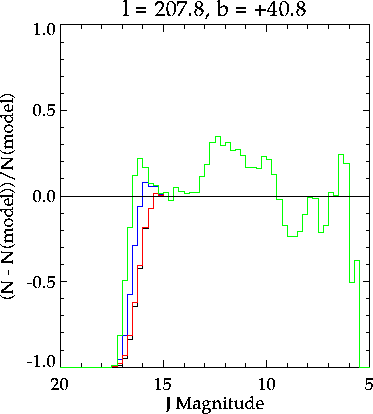

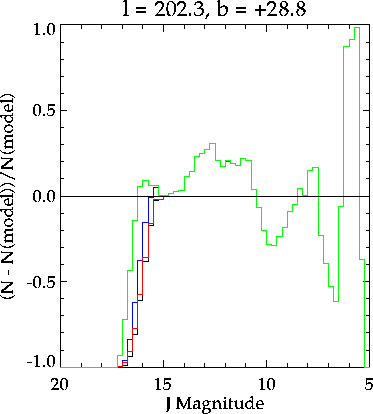

Four figures are shown for each position. The first of these is a plot of the fractional difference between the actual source counts and the SKY model as a function of magnitude bin for the J-band measurements. This figure (and the others for these fields) exclude sources in the lists which are flagged as extended sources (or contaminated by extended sources). We have limited this comparison to sources with signal-to-noise ratio (SNR) in the J band greater than 10, in order to avoid major deviations caused by flux overestimation at low SNR. For these plots, the black histogram (as opposed to the black zero deviation line) are those sources which have SNR > 10 in all three bands. The blue histogram are those sources for which the H band AND J band SNR are > 10, the red where Ks band AND J band have SNR > 10, and the green line are those sources for which the J band has SNR > 10.

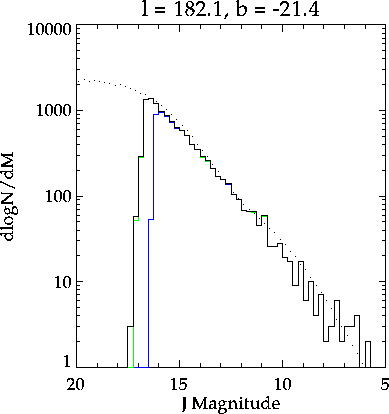

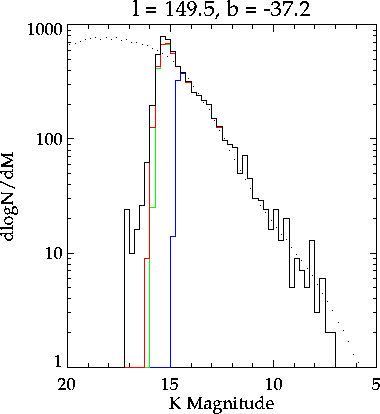

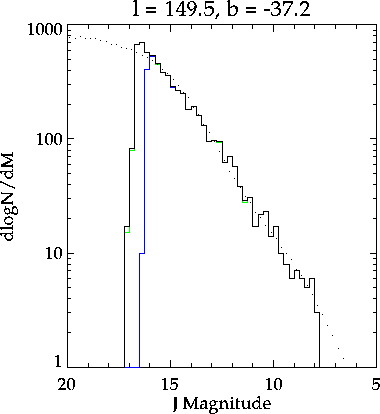

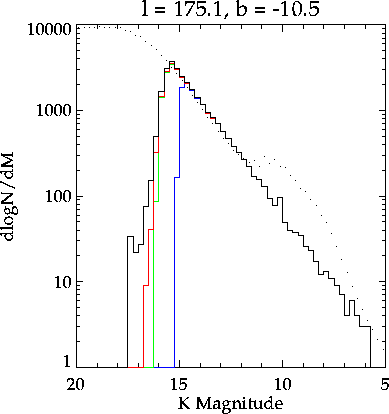

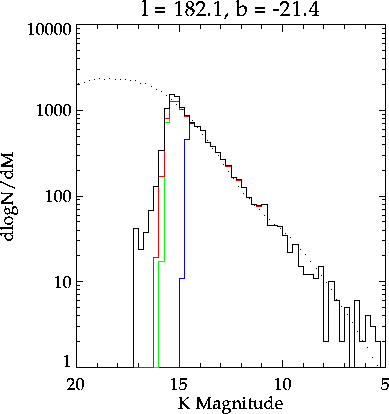

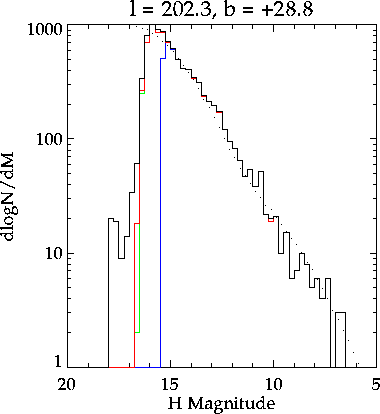

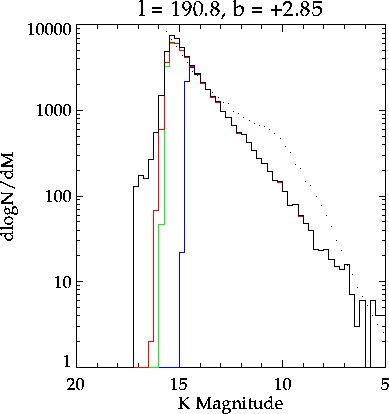

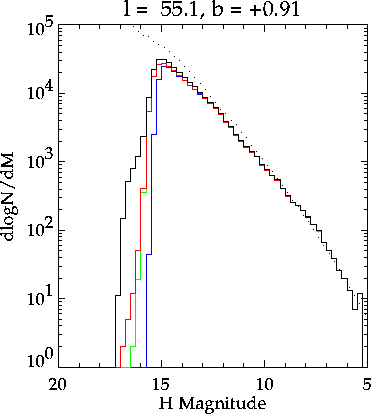

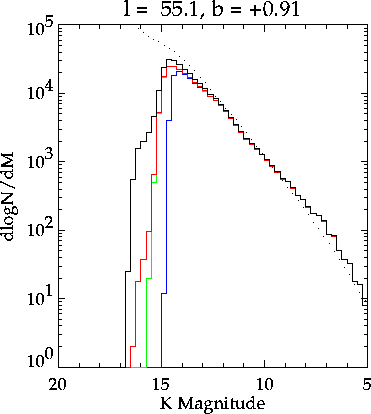

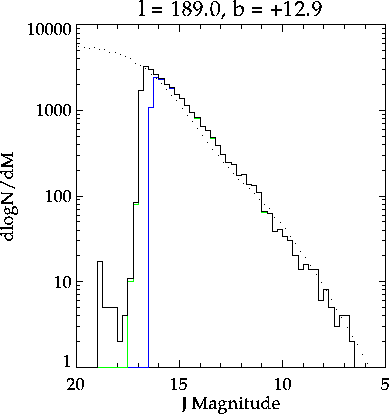

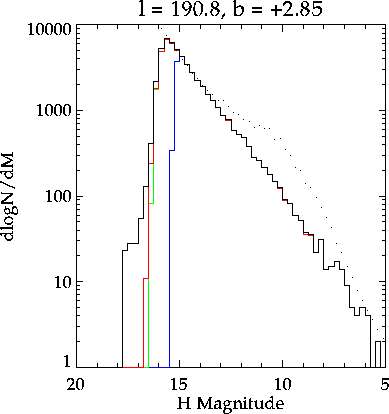

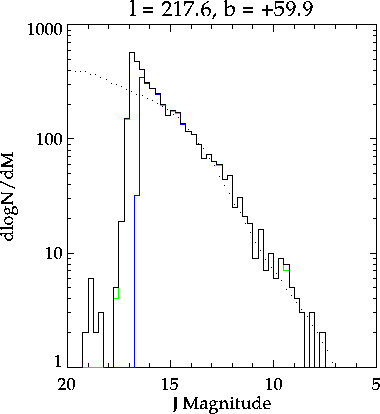

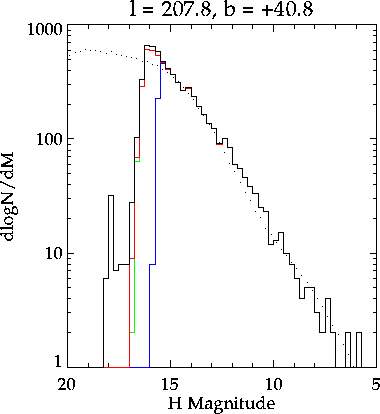

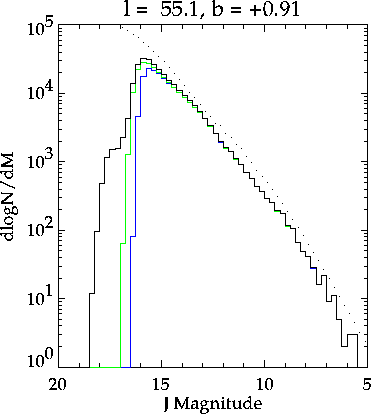

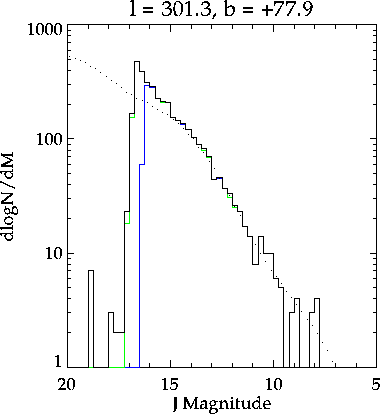

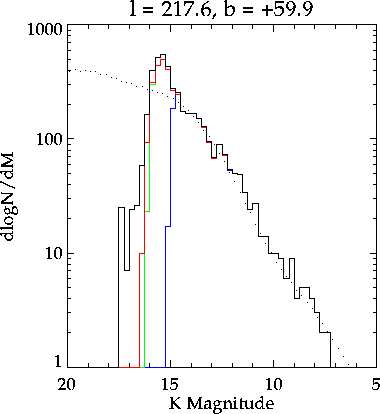

The remaining three figures show histograms of the differential source
counts as a function of magnitude for each 2MASS wavelength. The
source counts predicted by the SKY4 model (Cohen et al.) are overplotted
as black dots. The source counts have also been broken down by the
magnitude uncertainty value. The histogram printed in blue denotes
those sources with
< 0.1 mag; the green
histogram includes sources with < 0.25 mag;
the red histogram includes sources with < 0.5
mag, and the cyan includes all sources with non-null
values. The black line indicates the total source
count, including sources with null values in their magnitude uncertainty column
for that band (we assume these are the "fill" sources or some other limit).
The source counts for |b| > 20° appear to be in excellent agreement with the model. We see a slight deviation in the Catalog counts above the model predictions in the bins for SNR around 10 and below. This appears to be within the deviation expected for the combination of statistical deviation from the model and deviation due to flux overestimation bias.
Close to the Galactic plane, we see that the results are not quite as good. In the anti-center direction, there is a source count enhancement predicted by the model at magnitudes brighter than ~12 in all bands, which is not matched by Catalog sources counts, which appear to follow a single power law from magnitude 7 to 15. M. Cohen has noted that the source counts toward the anticenter are sharply different between the optical, near-IR and mid-IR. The cause of this discrepancy may have its basis in which source counts (optical, NIR, or MIR) are the basis of the dominant model component in this direction.
| Field | l | b |  N(J) |
d(log N)/dM(J) | d(log N)/dM(H) | d(log N)/dM(Ks) |

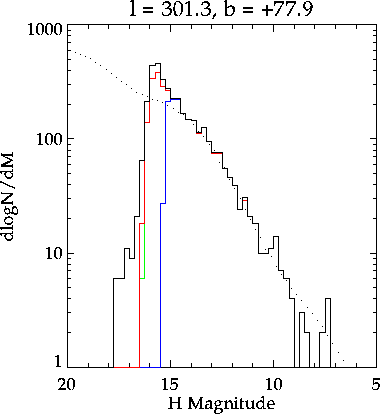

| 1 | 301.28 | +77.87 | Fig. 1a | Fig. 1b | Fig. 1c | Fig. 1d |

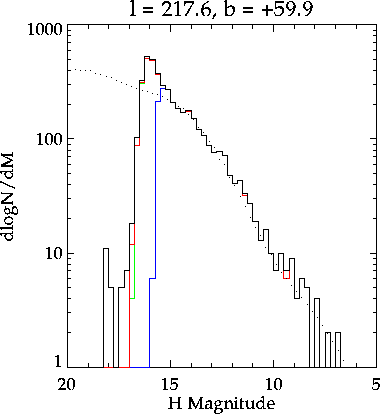

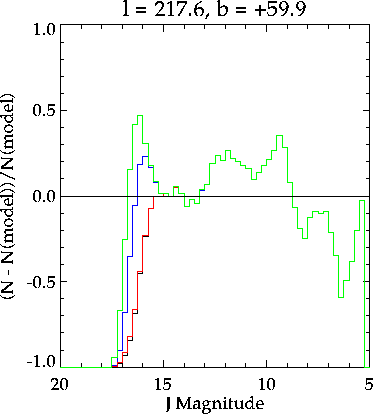

| 2 | 217.58 | +59.91 | Fig. 2a | Fig. 2b | Fig. 2c | Fig. 2d |

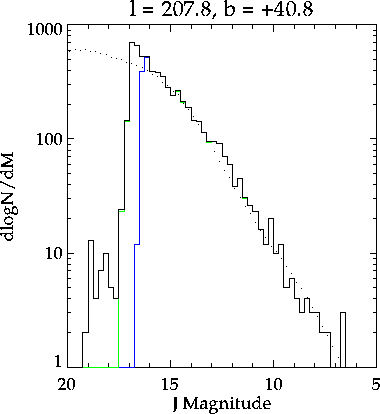

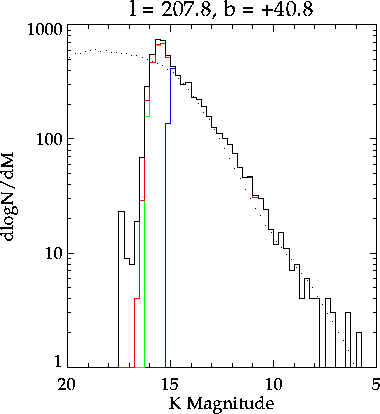

| 3 | 207.79 | +40.80 | Fig. 3a | Fig. 3b | Fig. 3c | Fig. 3d |

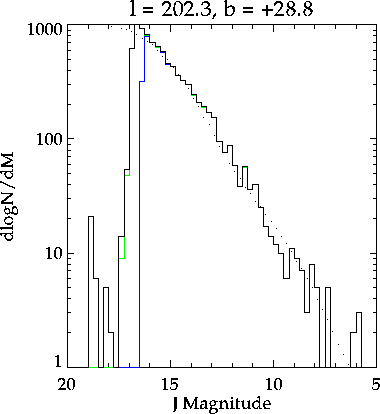

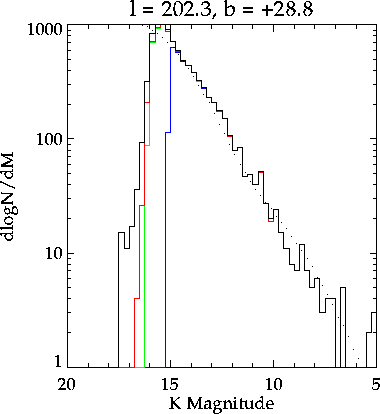

| 4 | 202.27 | +28.80 | Fig. 4a | Fig. 4b | Fig. 4c | Fig. 4d |

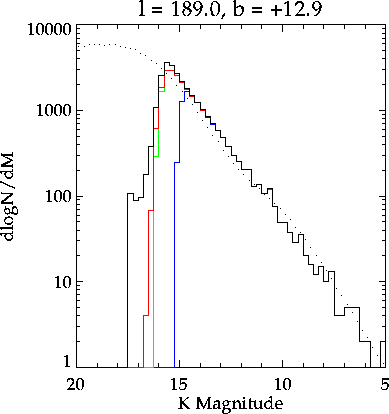

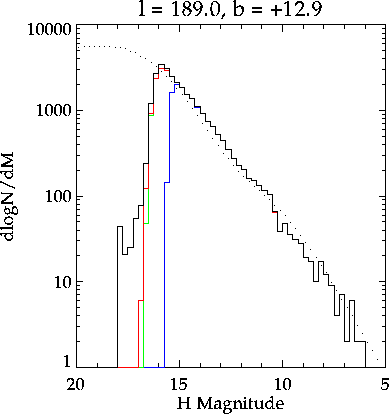

| 5 | 188.97 | +12.87 | Fig. 5a | Fig. 5b | Fig. 5c | Fig. 5d |

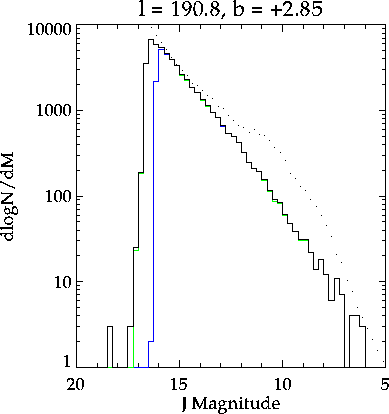

| 6 | 190.75 | +2.85 | Fig. 6a | Fig. 6b | Fig. 6c | Fig. 6d |

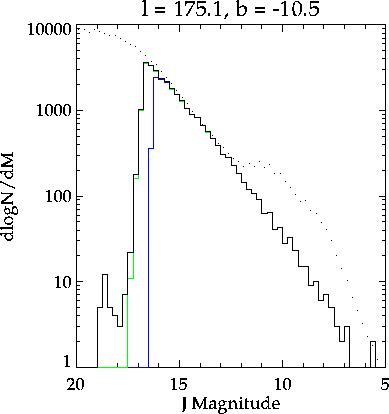

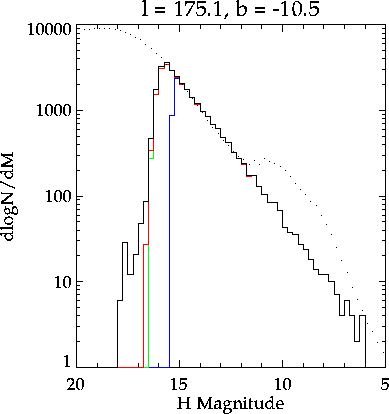

| 7 | 175.09 | -10.47 | Fig. 7a | Fig. 7b | Fig. 7c | Fig. 7d |

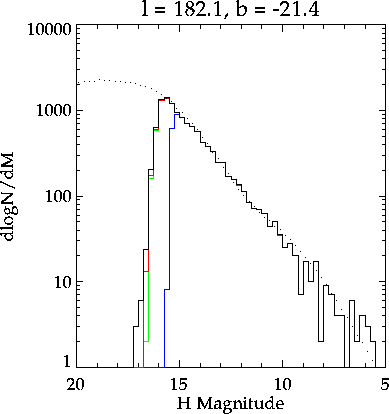

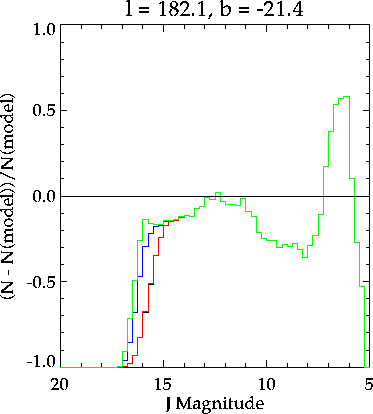

| 8 | 182.10 | -21.35 | Fig. 8a | Fig. 8b | Fig. 8c | Fig. 8d |

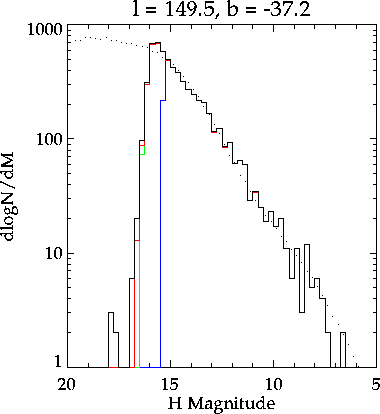

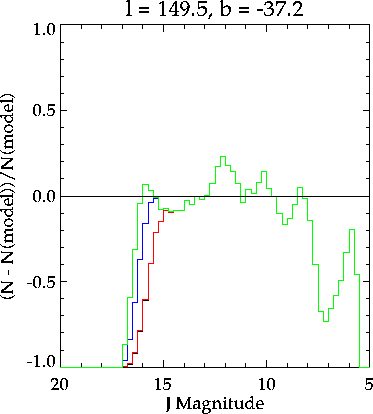

| 9 | 149.45 | -37.22 | Fig. 9a | Fig. 9b | Fig. 9c | Fig. 9d |
| 10 | 55.03 | +0.91 | Fig. 10a | Fig. 10b | Fig. 10c | Fig. 10d |
