II. Contents of the Second 2MASS Incremental Data Release
1. General Properties of the Data Release
- Range of Dates Over Which Release Data Were Acquired:
- North: 1997 June 7 - 1998 December 14 and 1999 February 2 - 1999 May 21 UT
- South: 1998 March 19 - 1999 February 20 UT
- Total Number of Fully or Partially Photometric Nights in that Range:
- Number of Survey Tiles Included in Release (59,650 in full sky):     27,493
- Area of Release:
- Nominal unique area covered by Tiles:
                                      19,680.8 sq.degrees
- Effective area of PSC (includes a 10´´ border for each Tile):     19,641.6 sq.degrees
- Effective area of XSC (includes a 15´´ border for each Tile):     19,609.4 sq.degrees

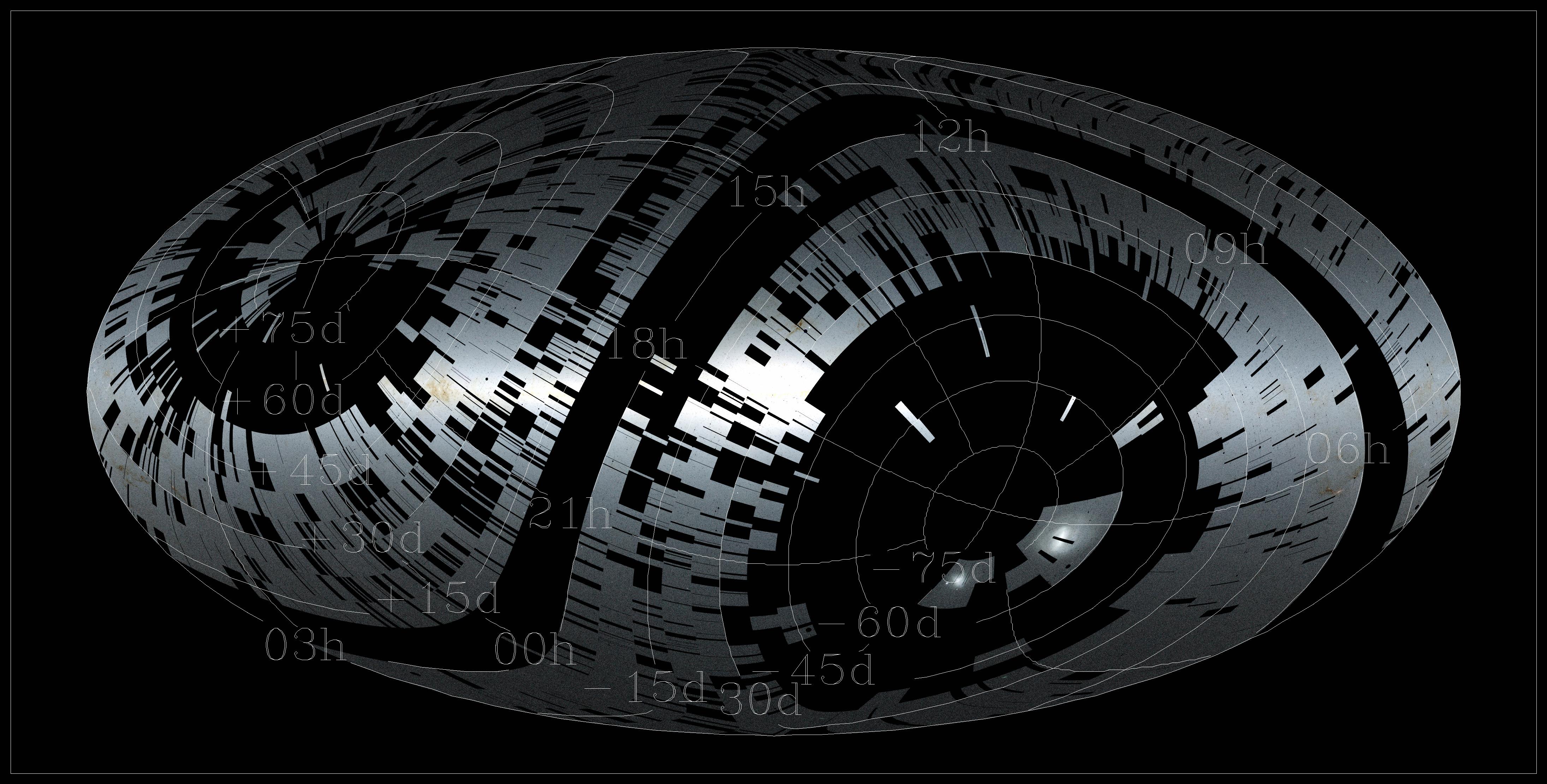

- Sky Coverage Map for Second Incremental Release
(2MASS PSC JHKs surface density map in galactic aitoff
projection, with equatorial coordinate grid overlay; c.f. I.6a.)
- Criteria for Selection of Tiles to Include in Release (c.f. V.2 for more details):
- Data Acquired in Photometric Conditions
(residuals to a linear fit to photometric zero point offset < 0.04 mag in all 3 bands)
- Photometric Sensitivity Meets Level 1 Requirements in all 3 Bands
(based on Average Sky Background Levels and Seeing in Tile)
- Average Seeing FWHM < 3.5´´ in all 3 Bands
(for accurate photometry and star/galaxy separation)
- H-Band Background Residual Noise Due to Atmospheric Airglow
< 5x the Noise Value Predicted for Background Level and Source Density
in >87% of a Tile Area
(for accurate extended source photometry)
- Tile Must Fall in Contiguous Block of >3 Acceptable Tiles
(for accurate assessment of positional uncertainties)
- Basic Tile Information Available in the
Scan Information Table Accessible
via IRSA/GATOR
- UT Observation Date and Time
- Reconstructed Tile Corner Positions
- Mean Photometric Parameters
- Mean Point Source Noise Levels
- Mean Extracted Source Densities
[Last Updated: 2000 April 10; by R. Cutri]
