Tile Number (click for preview image) | 90867 | |
Central R.A. Dec (J2000; deg) | 220.24529 | -0.45767 |
Central glon glat (deg) | 351.08190 | +51.86698 |
Corners of source extraction area (R.A./Dec. pairs - J2000 deg) | 220.175246 0.035279, 220.175246 -0.961584, 220.314103 0.035279, 220.314103 -0.961584 | |
Number Northgoing Scans Combined (J/H/Ks) | 453/453/453 | |
Number Southgoing Scans Combined (J/H/Ks) | 447/446/446 | |
Number of Extractions (includes artifacts) | 3394 |
Retrieve Images and Source List for this Field
Extracted Source Counts and Statistics | ||

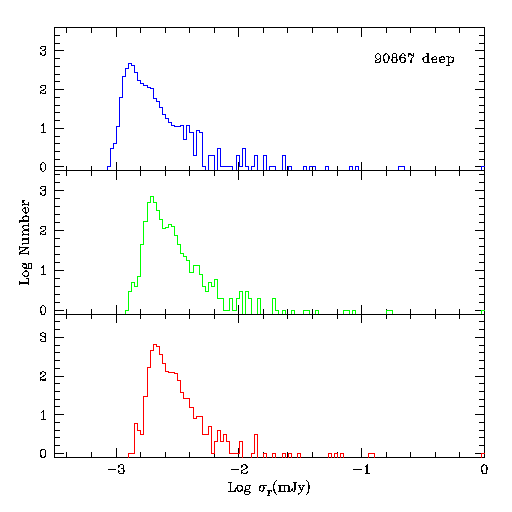

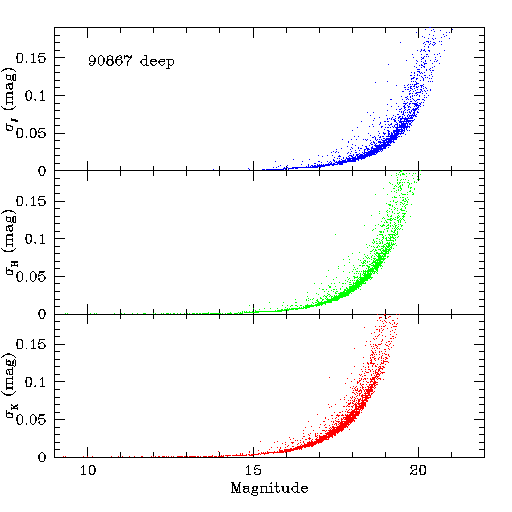

Figure 1 - Differential counts vs. magnitude for J (top), H (center), and Ks (bottom) bands. 2MASS All-Sky PSC source counts in the same approximate area are shown in the shaded region. | Figure 2 - Photometric uncertainties plotted versus magnitude for J (top), H (center), and Ks (bottom) bands. | Figure 3 - Log 1-sigma noise (mJy) histograms for J (top), H (center), and Ks (bottom) bands. |
Photometric Properties | ||

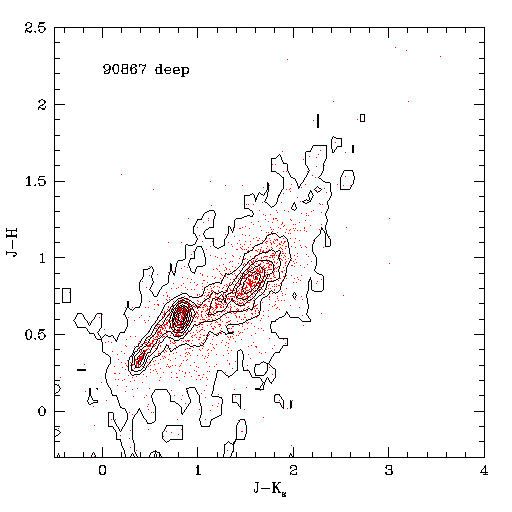

Figure 4 - Color-magnitude diagram. | Figure 5 - Color-color diagram. |
Extracted Source Photometric Residuals With Respect to the 2MASS PSC | ||

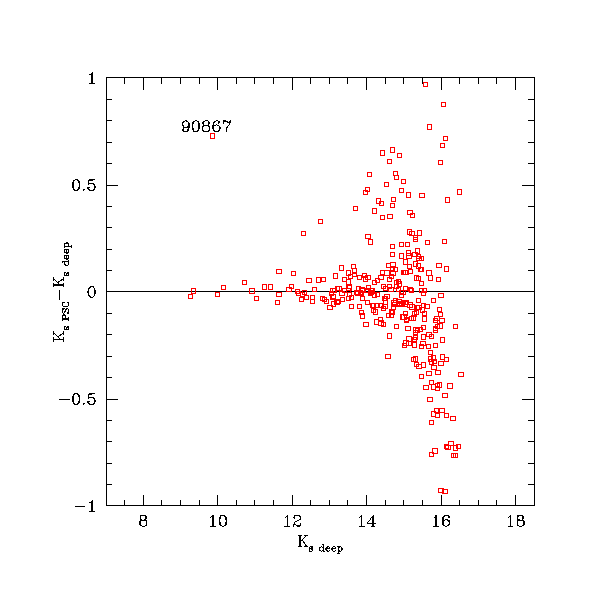

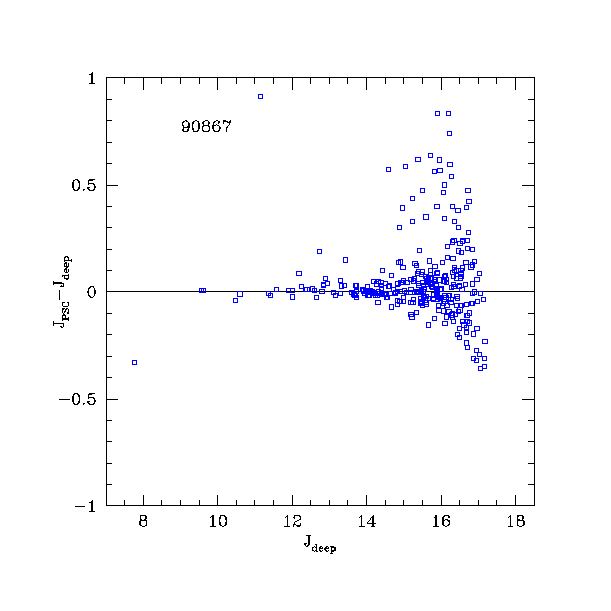

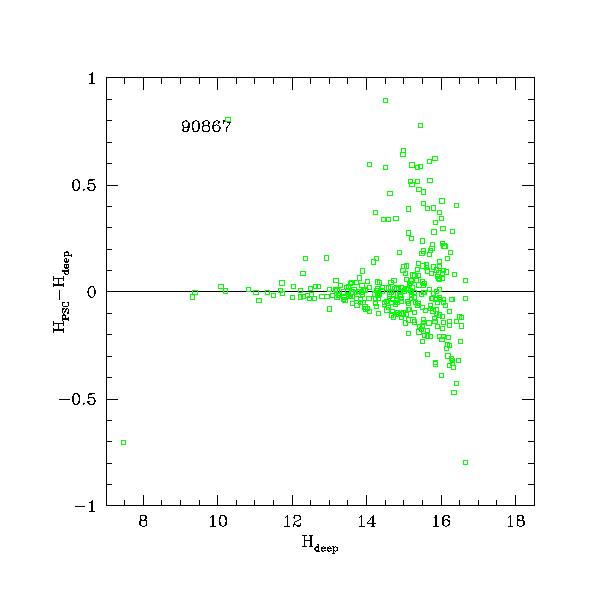

Figure 6 - J-band residuals (PSC-deep) Combination Calibration Scan J-magnitude. | Figure 7 - H-band residuals (PSC-deep) Combination Calibration Scan H-magnitude. | Figure 8 - Ks-band residuals (PSC-deep) Combination Calibration Scan Ks-magnitude. |
Extracted Source Position Residuals With Respect to the 2MASS PSC | ||

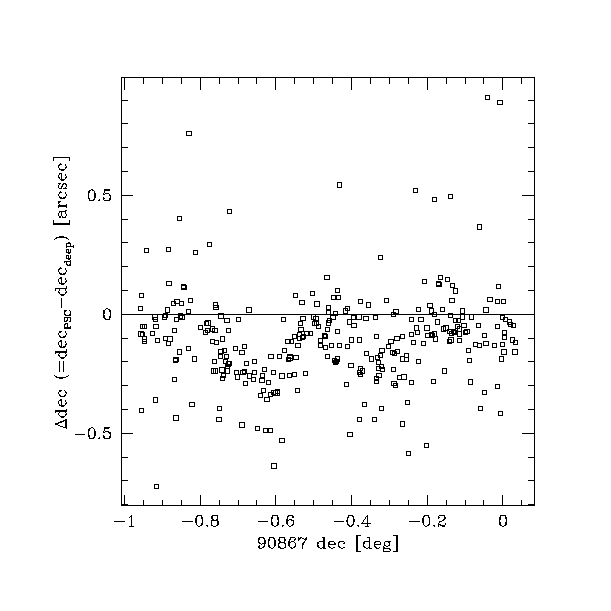

Figure 9 - Declination residuals (PSC-deep) plotted versus declination. | Figure 10 - Declination residuals (PSC-deep) plotted versus Right Ascension. | Figure 11 - Histogram of Declination residual (PSC-deep). |

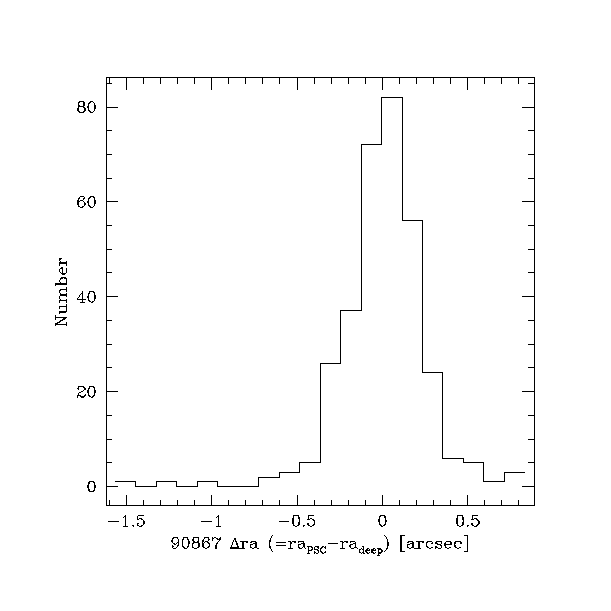

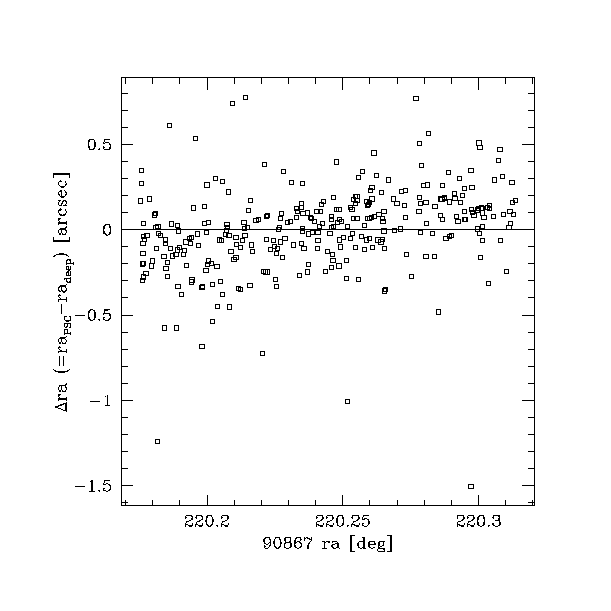

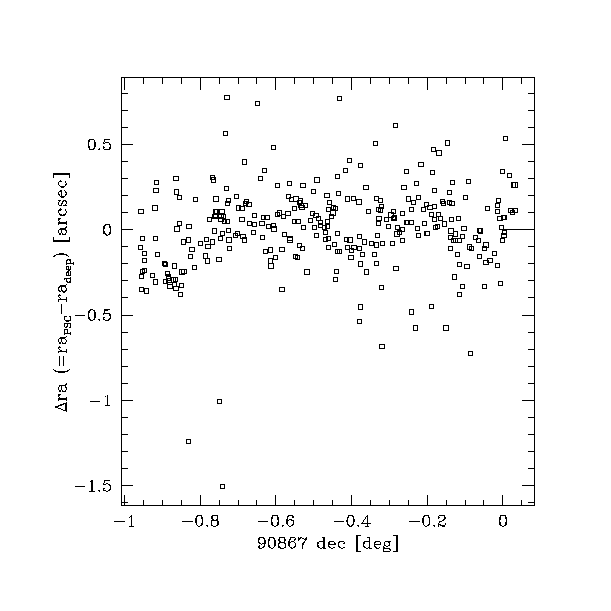

Figure 12 - Right Ascension residuals (PSC-deep) plotted versus Right Ascension. | Figure 13 - Right Ascension residuals (PSC-deep) plotted versus Declination. | Figure 14 - Histogram of Right Ascension residuals (PSC-deep). |
[Last Updated: 2006 May 17; by R. Cutri]
