The last major subsystem which ran in the 2MASS quasi-linear data reduction pipeline is the extended source processor, GALWORKS. The primary role of the processor is to characterize each detected source and decide which sources are "extended" or resolved with respect to the point spread function (PSF). Sources that are deemed "extended" are measured further, and the information is output to a separate table. In addition to tabulated source information, a small "postage stamp" image is extracted for each extended source from the corresponding J, H and Ks Atlas images. The source lists and image data are stored in the 2MASS extended source database. The basic input/output flow is shown in Figure 1.
By the time GALWORKS is run in the 2MASS pipeline, point sources have been fully measured, with refined positions and photometry, band-merged, coordinate positions calibrated, Atlas images constructed, and the time-dependent PSF characterized for every Atlas image. The high-level steps that encompass GALWORKS include: (1) bright star (and their associated features) removal, (2) large (>4´) cataloged-galaxy extraction and removal, (3) Atlas image background subtraction, (4) measurement of the stellar number density (see IV.5c) and confusion noise, (5) source parameterization and attribute measurements, including generation of PSF-tracking ridgelines, (6) star-galaxy discrimination, (7) refined photometric measurements, and finally, (8) source and image extraction; see flow schematic in Figure 2. Additional post-pipeline processing is carried out to produce complete and reliable Catalogs, which are released to the public.

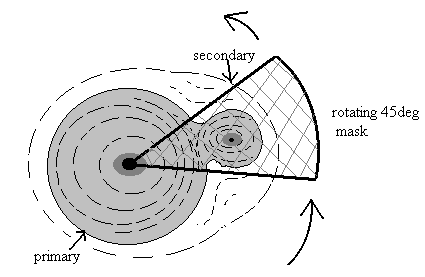

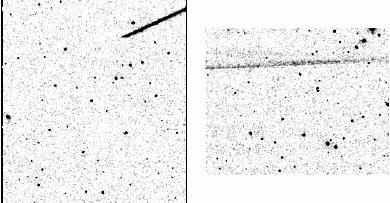

Figure 1 | Figure 2 |
2MASS is an all-sky project which acquired ~24.5 Tb of data over the lifetime of the project. This places severe runtime restrictions on the pipeline reduction software; consequently, one important caveat is that most of the GALWORKS algorithms and flow structures were designed specifically to run and operate as fast and as efficiently as possible, with some functionality omitted toward this end (e.g., orientation modeling; see below). The background subtraction operation is a particularly crucial step since both star-galaxy discrimination and photometry rely upon accurate zeroing, smoothing and flattening of the image background. This operation is described in detail below. Steps 4-6 are designed to isolate "normal" galaxies and other relatively high central surface brightness extended sources.
The 2MASS extended source database contains several classes of "extended objects," including real galaxies, Galactic nebulae and pieces of large angular-size sources, Galactic H II regions, multiple stars (mostly double stars), artifacts (pieces of bright stars, meteor streaks, etc.) and faint (mostly point-like) sources with uncertain classifications. For extended sources, the ultimate goal of the 2MASS project is to produce a reliable Catalog of real extended sources, predominantly galaxies. It is therefore necessary for additional "post-processing" steps to eliminate artifacts and confusing objects, such as double stars. We discuss here and here in detail how the star-galaxy separation process is performed. For the GALWORKS processor, the emphasis is placed primarily on completeness; that is, we want to comprehensively detect and identify extended sources (especially galaxies) brighter than the Level 1 specifications limits of Ks ~ 13.5, H ~14.3 and J ~15.0 mag. Later in the (non-GALWORKS) post-processing operations phase the galaxy completeness is relaxed (but is still within the Level 1 requirements), in order to achieve the desired reliability in the galaxy Catalog.
There are other kinds of extended sources that 2MASS is capable of detecting, including bright Galactic young stellar objects (H II regions, T-Tauri stars, etc.), faint nebulae and low surface-brightness (LSB) galaxies. These objects tend to be relatively rare and/or constrained to fields of relatively small angular size toward the Galactic plane (e.g., molecular clouds), and as such, no set requirements exist for their detection completeness or reliability. A separate catalog of bright extended stars and faint LSB galaxies will be released at a later date. A description of the algorithm to detect stars with associated extended emission (see below and the algorithm to detect low central surface brightness galaxies are described below.
i. Atlas Image Background Removal
In the near-infrared, the background "sky" emission has structure at all size
scales, primarily due to upper atmospheric aerosol and hydroxyl emission (the
so-called "airglow" emission; see Ramsey et al 1992). The OH emission is the
dominant component to the J- (1.3 µm) and H-band (1.7 µm)
backgrounds, while thermal continuum emission comprises the bulk of the
Ks (2.2 µm) background. The J and H images tend to
have more background "structure," and at times of severe airglow, the
background can have high frequency features, on scales of tens of arcseconds,
which can trigger false extended source detections. For extended sources, the
primary objective of the 2MASS project is to find and characterize galaxies
(and other extended objects) smaller than ~3´ in diameter. We
therefore attempt to remove airglow features slightly larger than this limiting
size scale, to minimize random and systematic photometric error from non-zero
background structure. This demands a more sophisticated fitting scheme than
median filtering or grid techniques allow (which are used, for example, in
SExtractor; Bertin & Arnouts 1996, A&AS, 117, 393). For the most part,
the background variation in a
given image (8.5´ × 17´) is smooth enough that it can be
modeled with a polynomial. A third-order polynomial turns out to be a good
compromise between a simple planar fit and a series of spline waves.
The
fitting procedure is first preceded by an image "clean" operation. Stars and
catalogued galaxies are masked from the image. Very bright stars
(Ks < 6 mag) require more complicated masking, including removal
of their bright internal reflection halo, diffraction spikes, horizontal
streaks, filter glints and persistence ghosts.
The background removal process is applied separately to each J, H,
and Ks Atlas image. Given the 2:1 image aspect ratio, the
"cross-scan" (E-W) length, ~8.5´, represents the
maximum area that can be modeled. Accordingly, a cubic polynomial,
ax3 + bx2 +cx + d, provides an effective model
for smooth background variations larger than ~2´ to 3´.
Along the 17´ "inscan" (N-S) direction we subdivide
the array into three sections, consisting of lower and upper 512´´
blocks, and a central 512´´ block. The central block acts as the
"glue" which smoothly joins the boundaries of the two lower/upper background
solution sections. The final 512 × 1024 pixel composite
solution is generated from a weighted average of each 512 × 512-pixel
block solution. The median value of the composite background solution for each
band is extracted and tabulated in the 2MASS database (and Catalog),
identified as "<band>_sky", where <band> refers to
either the J, H or Ks Atlas image. The median value of the
background solution local to a particular extended source is called
"<band>_back" in the database. The average
"noise" in the background-subtracted (and star-masked) Atlas Image is derived
from the average of the 16% and 84% histogram quartiles in the pixel
value distribution. In this way, the derived "noise" is analogous to a
1- RMS measurement. The pipeline extracted
parameter identification is "<band>_bkgnd_sig_his", representing
the "noise" of the background-removed Atlas image.

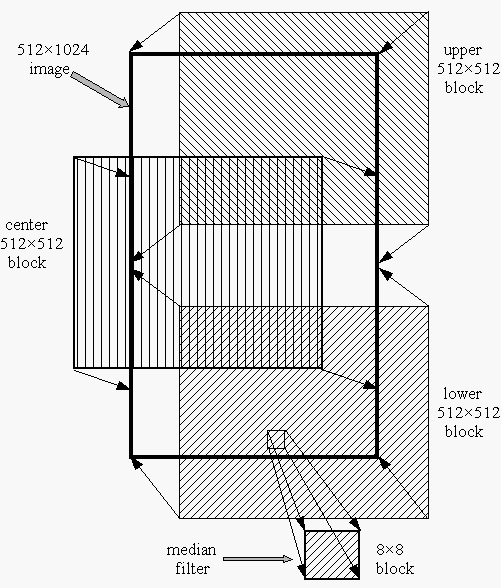

The decomposition schematic for background fitting procedure is illustrated in
Figure 3.
The 512 × 1024 pixel Atlas image is represented by a thick-lined
rectangle. The image is separated into three 512 × 512 pixel sections.
The image sections are then smoothed with an 8 × 8 pixel median filter,
to minimize contamination from faint stars and point-like objects that escaped
the masking "clean" procedure (see above).
Using a least-squares technique, a
cubic polynomial is iteratively fit with 3
rejection to each smoothed line within a section. The line solutions are used
as input to the next step, where we fit a cubic polynomial to each column in a
section, thereby coupling the line and column background solutions. The three
section solutions are then joined with a
(1/r) taper. Here
r refers to the relative radial
("in-scan") difference between
any two given section solutions. So, for example, combining the lower and
central sections at some point, Y' (which ranges
from 256 to 512 corresponding to the overlap region), gives the respective
weights [1 / | 256-Y' |] and
[1 / | 512 - Y' |], and for the central and upper sections,
the respective joining weights are [1 / | 512-Y' |] and
[1 / | 768 - Y' |], where
Y' ranges from 512 to 768. With this technique we are able to smoothly
combine the three independent solutions per Atlas Image. Note, however, that
the boundary solutions for the upper and lower blocks are better
constrained near the center of the Image, due to the weighted addition of the
central block solution image. Conversely, the background solutions are not as
well determined at the upper, >896 pixel row, and lower, <128 pixel row,
"in-scan" image extremes.

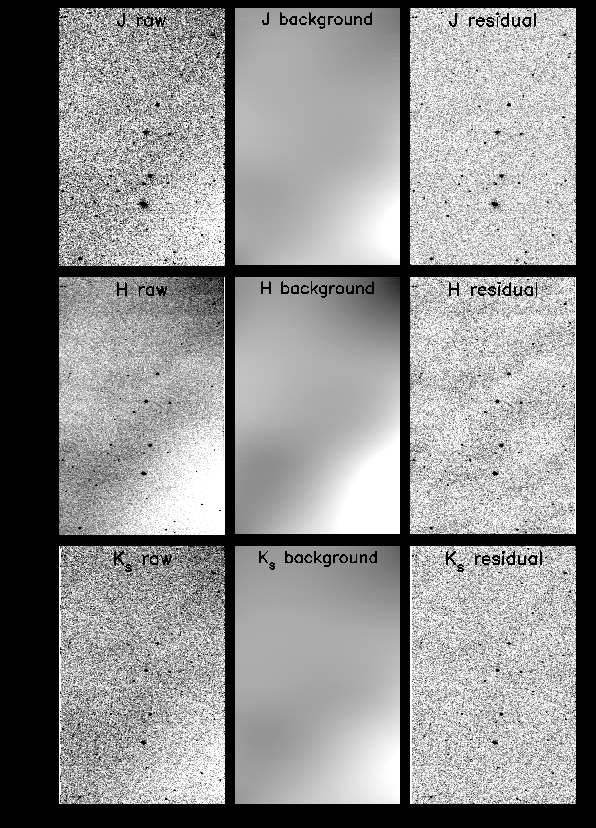

Representative performance of the background removal operation is shown in
Figure 4. The Image data come from a
typical "photometric" northern hemisphere night. Note the significant
"airglow" emission during the period that these data were acquired (see H band,
middle panels). The figures show the "raw" Atlas Image, resultant background
solution image, and residual (background subtracted) image. The greyscale
stretch ranges from -2 to
5 of the mean background
level (where is the background "noise"
derived from the background-removed, Atlas Image pixel histogram; see
above).
The J, H, and Ks raw images reveal fairly low level (smooth, but
non-linear) background variations, while the corresponding residual images
show very little (if any) background structure. However, airglow emission is
much more prevalent in the H band, with size scales smaller than
´-2´, as evident in the residual image. It is this
residual structure in the background (with amplitude >10% of the mean
background noise) which can induce systematics in the photometry,
parameterization (e.g., azimuthal ellipse fitting), and reliability.
For the cases in which the airglow frequency of variation were higher than can
be adequately removed, the resultant photometry (particularly at H band) is
compromised.
Inevitably, cases remain in which residual airglow in the background-removed
images significantly
affects the H-band photometry (and possibly at J band, as well), but otherwise
went unrecognized in the quality review process.
Figure 3 | Figure 4 |
ii. Source Positions
In addition to the coordinate position based on the PSF-fitting operation, two
additional "extended source" positions are computed. The first is based upon
the peak pixel from the J-band image, where 2MASS is most sensitive (except
when dust extinction is appreciable). The precision of the peak-pixel
coordinate is limited by the 2´´ resolution and
convolution method used to construct/resample Atlas Images from raw frames.
Based on internal repeatability tests and external comparisons with
astrometrically accurate galaxy catalogs (see Jarrett et al. 2002b, in
preparation), these
coordinate positions possess a RMS uncertainty of ~0.5´´. They are
identified in the 2MASS database as "ra" and "dec". The
second is based upon the intensity-weighted centroid of the J+H+Ks
"super" Atlas Image. The "super" centroid coordinate position is usually more
precise, since it applies a 2-D centroid to higher SNR data, but it can be more
highly influenced by unusual morphologies and extinction. Based on
repeatability
tests, the estimated uncertainty of the "super" centroid position is
.3´´ for normal surface brightness galaxies. The
database names are "sup_ra" and "sup_dec". See
II.3d5 for a comparison between the astrometry of
galaxies detected in the near-infrared and radio, based on the 2MASS XSC and
the FIRST radio survey.
iii. Ellipse Fitting and Object Orientation
The 2MASS undersampling and runtime constraints limit fitting an ellipse to
a single surface brightness isophote in each band. To minimize the effect of
PSF elongation and to best approximate the mean orientation of the
galaxy being measured, the isophote to be fit corresponds to a surface
brightness of about three times the background noise (3). The precise isophote value is derived from
preset surface brightness values, one for each band, that are chosen to match
(in a statistical sense) an equivalent surface brightness of ~3. These values are 20.09 mag/arcsec2 at
J, ~19.34 mag/arcsec2 at H and ~18.55 mag/arcsec2 at
Ks, each corresponding to about ~3
for typical background levels encountered in 2MASS. The isophote center is
anchored to the intensity peak pixel of the source, where no attempt is made
to iteratively adjust the isophote central position. The resulting elliptical
parameters, axis ratio (b/a) and position angle
(), are meant to
represent the object orientation. It is this orientation which is used
as a template for elliptical-isophote and Kron photometry (described
below) and for symmetry parameterization (also described
below).
Using only one isophote to represent the shape of a galaxy is clearly an
approximation, since the orientation of galaxies vary with radius. But, in the
near-infrared most galaxies appear to have somewhat more consistent
orientations and axis ratios at different radii, owing to the relatively smooth
distribution of stars that dominate the 2µm light
and the decreasing importance of extinction at these wavelengths. Moreover,
most 2MASS galaxies are small in size (~15´´ in diameter), so, at
th ~2´´ angular resolution, multiple fits are not especially useful.
In addition to requiring that the ellipse-fitting method run fast, it also
must be robust in the presence of confusion from nearby sources (i.e., stars)
and correlated noise features, which form "extended" limbs and other
disconnected extended features. We do this by carefully masking neighboring
sources when
the stellar source density is high (see below), and removing linear 1-pixel
wide "limbs" that extend outward from the primary
3 isophote (note that a real "limb" associated
with the galaxy will generally be wider than 1 pixel). Moreover, since the
desired ellipse model is symmetric across the major and minor axes, it tends
to minimize the effects of asymmetric features (such as the presence of a
nearby source). A "clean" isophote is critical for reliable convergence to the
actual object orientation.
Once we have isolated the 3 isophote belonging
to the objective galaxy, it is a straightforward procedure to fit an ellipse
to the data. We assume that the center of the isophote corresponds to the peak
in the light distribution (i.e., the peak pixel). The desired ellipse is then
fully described by the axis ratio, position angle and Ks-band
semi-major radius. The identifier names in the 2MASS database are
"<band>_ba", "<band>_phi", and
"r_3sig", respectively. We derive these values by minimizing the
function
An additional fit is performed on the combined (J+H+Ks) "super"
Atlas Image. In general, the "super" Atlas Image has a higher signal to noise
ratio (S/N) than the individual fits. Accordingly, the derived "super" Atlas
Image orientation serves as the "default" shape for cases in which the
individual band flux is fainter than ~14.4 mag at J, ~13.9 mag at H, and ~13.5
mag at Ks, or when S/N for the galaxy is less than
5.0, based on the R=10´´ fixed circular aperture
photometry. For the case in which the derived semi-major radius is less than
5´´ or greater than 70´´, the source is assumed to be
round, and the axis ratio parameter is set to unity. For the case in which the
derived axial ratio is less than 0.10, the ellipse fit parameters are set to
the corresponding fit from the "super" Atlas Image. Finally, the "super" Atlas
Image values are also used when the individual band fit, for one reason or
another, is not possible (e.g., when masked pixels are present within
1´´ of the peak pixel). The database names are "sup_ba",
"sup_phi", "sup_r_3sig", and "sup_chi_ellf".
A final note regarding the ellipse fitting operation relates to
nearby-neighbor masking: Bright disk galaxies (Ks < 12.5 mag) in
which the inclination is large (>40°) are apt to be "split" into
multiple point sources by the initial source detector (discussed
above).
Consequently, we do not perform any stellar masking or subtraction specific to
the ellipse fitting step, except when the stellar number density is
high, >2000 stars deg-2 for Ks < 14 mag, in which
case it is more favorable to mask out nearby stars,
given the high probability of contamination. This ellipse-fitting detail
should not be confused with the general GALWORKS
procedure of near-neighbor masking prior to photometry or radial-symmetry
measurements. See also
IV.5d.
iv. Photometry
Given the assorted shape, size and surface brightness that galaxies exhibit
in the near-infrared, a corresponding diverse array of apertures is used to
compute the integrated fluxes. Contamination from stars within or near the
aperture boundary is minimized with pixel masking, but still remains
significant when the confusion noise is high. Flux from masked pixels is
"recovered" with isophotal substitution, where the mean value of the elliptical
isophote (based on the elliptical shape parameters, b/a and
) replaces the given masked pixel through which
the isophote passes. More detailed discussion of stellar contamination and
rectification thereof in 2MASS galaxy photometry can be found in Jarrett et
al. (1996, in The Impact of Large Scale Near-IR Sky Surveys, p. 213; see
also IV.5e).
The simplest measures come from fixed circular apertures. Fluxes are
reported for a set of fixed circular apertures at the following radii: 5, 7,
10, 15, 20, 25, 30, 40, 50, 60, and 70´´,
centered on the J-band peak pixel. (Note: the large set of apertures was
chosen so that the user could generate a curve of growth to estimate the total
flux). We report both the integrated flux within the aperture (with fractional
pixel boundaries) and the estimated uncertainty in the integrated flux. The
magnitude uncertainty is based solely on the aperture size and the measured
noise in the Atlas Image, which includes both the read-noise component and
background Poisson component, as well as the confusion noise component, which
becomes significant when the stellar source density is high (see
IV.5g).
The uncertainty does not incorporate other errors, due to source
contamination, background gradients (e.g., airglow ridges with a higher spatial
frequency than the background removal process can handle; see
above),
zero-point calibration error, and uncertainties in the adaptive apertures
(e.g., isophotal photometry, see below). A more detailed discussion of the
2MASS galaxy photometry error tree can be found in IV.5f
. Contamination,
confusion and masking flags are also attached to each flux. In the 2MASS
database the photometry names are, for example, "<band>_m_10",
"<band>_msig_10", and "<band>_flg_10", for the
10´´ radius aperture photometry, uncertainty and
confusion flag names, respectively.
For the great majority of faint galaxies in the 2MASS Catalog, small fixed
circular apertures give the best compromise between increasing noise, due to
confusion and missing flux in the faint outer parts of galaxies. In particular,
the circular 7´´ radius aperture appears to have
the optimum match with the coupling between the 2MASS undersampling and PSF
elongation, with the H and Ks background noise, and with the size
of galaxies fainter than Ks~13 mag.
Adaptive aperture photometry includes isophotal and Kron metrics. The
isophotal measurements are set at the 20 mag per arcsec2 surface
brightness isophote at Ks and the 21 mag per arcsec2 at
J, using both circular and elliptical shape-fit apertures (see the previous subsection). Kron aperture photometry
(Kron 1980, ApJS, 43, 305) employs a method in which the
aperture is controlled/adapted to the first image moment radius. The Kron
radius, which is frequently used in galaxy photometry as a "total" measure of
the integrated flux (see Koo 1986, ApJ, 311, 651; Bertin & Arnouts 1996,
A&AS, 117, 393), turns out to
roughly correspond to the 20 mag per arcsec2 isophotal radius under
typical observing conditions. The minimum radius is set at
R=7´´, due to the rapidly increasing (PSF shape and
background noise) uncertainty in the isophotal or Kron radial measurement for
radii smaller than this limit. See also
IV.5e.
For purposes of computing colors, two classes of adaptive photometry are
carried out: individual and fiducial. "Individual" photometry refers to
the use of adapted apertures derived per band, which is useful for single-band
limited studies. The 2MASS database names (semi-major axis radius, integrated
flux, uncertainty and confusion flag) for individual Kron photometry are
"<band>_r_e",
"<band>_m_e",
"<band>_msig_e", and
"<band>_flg_e", for elliptical apertures, and
"<band>_r_c",
"<band>_m_c",
"<band>_msig_c", and
"<band>_flg_c", for circular apertures.
Database names for individual 20 mag per arcsec2
isophotal photometry are
"<band>_r_i20e",
"<band>_m_i20e",
"<band>_msig_i20e", and
"<band>_flg_i20e", for elliptical apertures, and
"<band>_r_i20c",
"<band>_m_i20c",
"<band>_msig_i20c", and
"<band>_flg_i20c", for circular apertures.
Individual 21 mag per arcsec2 isophotal photometry names are
"<band>_r_i21e",
"<band>_m_i21e",
"<band>_msig_i21e", and
"<band>_flg_i21e", for elliptical apertures, and
"<band>_r_i21c",
"<band>_m_i21c",
"<band>_msig_i21c", and
"<band>_flg_i21c", for circular apertures.
The real power of 2MASS data is having simultaneous J-Ks, J-H
and H-Ks colors. Colors require a consistent aperture size
and shape for all three bands, based on either the J or Ks
isophotes, respectively referred to as the "J fiducial" and "K fiducial"
photometry. For the brighter galaxies in the Catalog, with Ks <
13 mag, the "K" fiducial isophotal elliptical aperture photometry
appears to provide the most precise measurement (based on repeatability tests),
but errors in the ellipse fit to the 3 isophote
(see the previous subsection) result in an
uncertainty that
is difficult to evaluate (see IV.5f). The
adaptive circular apertures reduce some of that
uncertainty, but do increase the overall noise, due to additional sky noise
within the non-optimized aperture, resulting in a less precise, but more robust
measurement. 2MASS database names (semi-major axis radius, integrated flux,
uncertainty and confusion flag, respectively) for fiducial Kron photometry are
"r_fe",
"<band>_m_fe",
"<band>_msig_fe", and
"<band>_flg_fe", for elliptical apertures, and
"r_fc",
"<band>_m_fc",
"<band>_msig_fc", and
"<band>_flg_fc", for circular apertures.
Database names for fiducial 20 mag per arcsec2 isophotal photometry
are
"r_k20fe",
"<band>_m_k20fe",
"<band>_msig_k20fe", and
"<band>_flg_k20fe", for elliptical apertures, and
"r_k20fc",
"<band>_m_k20fc",
"<band>_msig_k20fc", and
"<band>_flg_k20fc", for circular apertures.
J-band fiducial 21 mag per arcsec2 isophotal photometry names are
"r_j21fe",
"<band>_m_j21fe",
"<band>_msig_j21fe", and
"<band>_flg_j21fe", for elliptical apertures, and
"r_j21fc",
"<band>_m_j21fc",
"<band>_msig_j21fc", and
"<band>_flg_j21fc", for circular apertures.
Additional flux measures include the central surface brightness (peak pixel
flux) and the "core" surface brightness (average flux over a 5´´
radius), and the effective, or half-light, surface brightness. Database names
are
"<band>_peak",
"<band>_5surf", "<band>_mnsurfb_eff"
for the peak, core, and half-light surface brightness, respectively.
Finally, a "system" measurement is carried out in which no stellar masking is
performed, nor any masking of flux from neighboring galaxies. The "system"
flux indicates the total flux in and around a galaxy, so it will include the
total light in closely interacting systems. A set of contamination flags
supplement the system measurements: one indicating stellar contamination and
the other neighboring galaxy "contamination." Database names are
"<band>_m_sys",
"<band>_msig_sys" and
"sys_flg", for the integrated flux, uncertainty, and confusion flag,
respectively.
The extrapolation magnitudes represent the "total" flux of the object.
The radial surface brightness profile
is first fit with a two-parameter exponential function, deriving the scale
length and modifier
,
according to Eq. IV.5.2 (below).
The profile extends down below the 20 mag arcsec-2
isophote (per band). The inner 10´´ radius is excluded from the fit,
due to the proximal effects of the PSF (hence, f0 is set to
the isophotal value at 10´´ radius). The exponential is then
extrapolated from the isophotal radius,
to four times the disk scale length (or equivalent).
See IV.5e.
(Eq. IV.5.1)
which describes the elliptical radial distribution of the
3 isophote, given a particular
(b/a, ) solution.
If rijiso refers to the semi-major
radius corresponding to a 3 isophote
(i, j) pixel located at (x,
y) from
the central peak-pixel position, then the mean radial distribution of
3 isophote pixels is , and the population standard deviation is
. If the ellipse
(oriented by b/a and ) is perfectly
matched to the isophote, then the mean variance in riso is
identically zero, and represents the ellipse semi-major axis,
rsemi. But if the match is poor, then the variance is large,
while the population mean can be large or small, generally resulting in a
large 2 value. Therefore, by
minimizing the ratio of the standard deviation to the mean radius in
the distribution, we arrive at the best-fit ellipse solution. In this fashion,
the elliptical parameters are derived for each band. Due to the resolution and
sensitivity of the survey, there are practical limits to which we can measure
the orientation and size of a galaxy: the minimum axis ratio has a floor at
0.10, and the minimum semi-major axis radius is 5.0´´ (see below).
We will refer to Eq. IV.5.1 as the "goodness-of-fit," or "chi-frac," metric; the
J and Ks-band database names are "j_chi_ellf" and
"k_chi_ellf", respectively. The goodness-of-fit
metric can used to indicate problems with the fit (due to stellar contamination
or noise, in the case of faint sources) or real asymmetry in the object.
For the final re-processing of the extended data, the ellipse-fitting algorithm
was improved and provides more robust estimates of the galaxy shape; see
IV.5d.
RJext | J extrapolation radius |
Jext | J mag from fit extrapolation |
RHext | H extrapolation radius |
Hext | H mag from fit extrapolation |
RKsext | Ks extrapolation radius |
Ksext | Ks mag from fit extrapolation |
v. Source Parameterization
The first step toward discerning extended sources, including galaxies and
Galactic nebulae, from point sources (mostly stars) is to accurately
characterize the PSF. The distinctive shape of the 2MASS PSF
derives from a combination of factors: the optics, large 2´´ pixels
(frame images), dithering pattern of the six frame samples that comprise the
Atlas Image, location of the source within the unit cell of dither pattern,
focus, the sampling/convolution algorithm to generate the Atlas Images, and
atmospheric seeing. As such, the 2MASS PSF corresponding to frame-coadded
images is not well fit with a simple Gaussian function. It can, however, be
adequately characterized by a generalized exponential function (see below) out
to a radius ~2×FWHM, that makes effective star-galaxy discrimination
possible.
The 2MASS PSF typically varies on timescales of ~minutes, due to
atmospheric "seeing" and thermally-driven variable telescope focus. The 2MASS
telescopes were designed to be mostly free of afocal PSFs (under most
conditions), but 2MASS images can be slightly out of focus during periods of
rapid change in the air temperature - conditions that generally only occur
during the hottest summer months. Out-of-focus images have the difficult
property of possessing elongated PSFs. Fortunately, under most typical
observing conditions for the survey, the PSFs are symmetric throughout the
focal plane. That leaves the atmospheric seeing as the primary dynamic to the
radial size of the PSF. Given the exposure times per sample (1.3 s) and the
six-sample co-addition (with optimal dithering to produce round PSFs), seeing
changes result in a mostly symmetric "puffing" in and out of the resultant
Atlas Image PSF (the seeing "speckle" pattern is negligible, given the 1.3 s
exposure time per frame and the co-addition smoothing). We can represent the
image PSF with the generalized radially symmetric exponential of the form:
where f0 is the central surface brightness, r is
the radius in arcsec, and and
are
free parameters. This versatile function (see Sersic 1968) not only describes
the 2MASS PSF, but it also characterizes the radial profiles of
galaxies, from disk-dominated spirals ( close to
unity) to ellipsoidal galaxies ( ~ 4, i.e., the de
Vaucouleurs "law"). It has even been used to describe less well-defined
morphologies: Binggeli & Jerjen (1998, A&A, 333, 17)
successfully modeled the surface
brightness profiles of cD and dwarf spheroidal galaxies with this method.
Although the generalized surface brightness function (Eq. IV.5.2) can be used
to derive meaningful fit parameters for galaxies brighter than Ks ~
12 mag, for fainter galaxies the fit parameters are heavily
influenced by the PSF and image noise. Furthermore, due to the relatively
small areal region of the fit (Eq. IV.5.2) to the radial surface brightness,
typically only ~8´´ in radius, to minimize the
effects of background noise, the scale length and
modifier exhibit a high degree
of correlation,
and, hence, individual values of these parameters are not meaningful or
physically connected to the source itself. Nevertheless, the fit parameters
have still proved useful to distinguish extended sources from point sources.
In particular, the quantity
(×) robustly
measures the average spatial extent of a source. Resolved galaxies tend to
have larger values of both and
than stars, so the
multiplicative join of the
exponential fitting parameters amplifies the difference between point sources
and extended sources. The (×) quantity, referred to
as the "radial shape" (or "shape," for short), is the fundamental parameter for
distinguishing between isolated stars and resolved objects (e.g., galaxies).
Its variant cousins (described in the next subsection) provide further power for
discriminating galaxies from more complex point sources, including double and
triple stars.
The "shape" is also used as the atmospheric "seeing" metric for 2MASS point
and extended source data. The generalized exponential function (Eq. IV.5.2) is
applied to all sources, and a robust "shape" value is derived from an interval
of time by careful analysis (see below). Here, the "shape" is analogous to a
FWHM measurement for the time-variable PSF. Our ability to track the seeing on
short timescales depends on the density of stars. The more stars available
to measure a statistically meaningful value of the "shape," the higher the
frequency of seeing changes that can be tracked. A reasonable shape value can
be derived from a minimum of about 10 stars. Consequently, for low
stellar-density regions, such as the north Galactic pole (~300 stars per
deg2 brighter than 14 mag at 2.2µm), the seeing is tracked on
timescales of about 30 s;
for high density regions (>104 stars deg-2) the
seeing is
tracked on timescales of a few seconds. Experience has shown that the seeing
can indeed significantly change on timescales as fast as seconds of time
(see below).
As is the case for all ground-based observations, the PSF changes with time,
due to the changing thermal environment and dynamic atmospheric "seeing." The
stellar "ridgeline" refers to the mean values of the PSF "shape" during an
observation scan (6° in length and about 6
minutes of real time). The stellar ridgeline provide two important pieces of
information crucial to both "seeing" tracking and star-galaxy separation: (1)
the time-dependent PSF, and (2) the uncertainty, or spread, in the stellar PSF
distribution. The spread is a combination of an intrinsic component arising
from the pixel undersampling in the original frames and dither pattern for
co-addition, and an environmental component. The short time interval from which
the main "shape" is computed is subject to small, but variable, seeing and
focus changes.
The mean "shape" is determined from an ensemble of isolated stars spatially
clustered along the in-scan direction (the direction most affected by time).
The sample population must be free of extended sources (galaxies) and double
stars to provide
a meaningful measure of the PSF. We employ an iterative selection method that
is keyed by using an initial boot-strap from the lower quartile of the
total population distribution. Since isolated stars will have an inherently
smaller "shape" value than extended sources (or double stars), the lower
quartile (25%) is populated nearly entirely by isolated stars and the upper
quartile will be contaminated by resolved sources, such as double stars and
galaxies. Hence, the distribution's lower quartile serves as a good first
guess at the actual mean shape value of isolated stars. Once the lower
quartile is identified, we can iteratively search a restricted range in the
distribution to arrive at a stable and robust estimation of the true mean shape
value for isolated stars. The initial restricted range corresponds to
-3 to +2 of
the lower quartile, where is the RMS scatter
in the "shape" value.
In the first iteration we use an a priori determination of
. For each iteration thereafter, we set hard
limits of ±2. The final
"shape" value corresponds to the median (50% central quartile) of the
restricted sample distribution, and the
corresponds to the RMS scatter, or standard deviation, of the population. The
2MASS database names
are "<band>_sh0" and "<band>_sig_sh0", respectively.

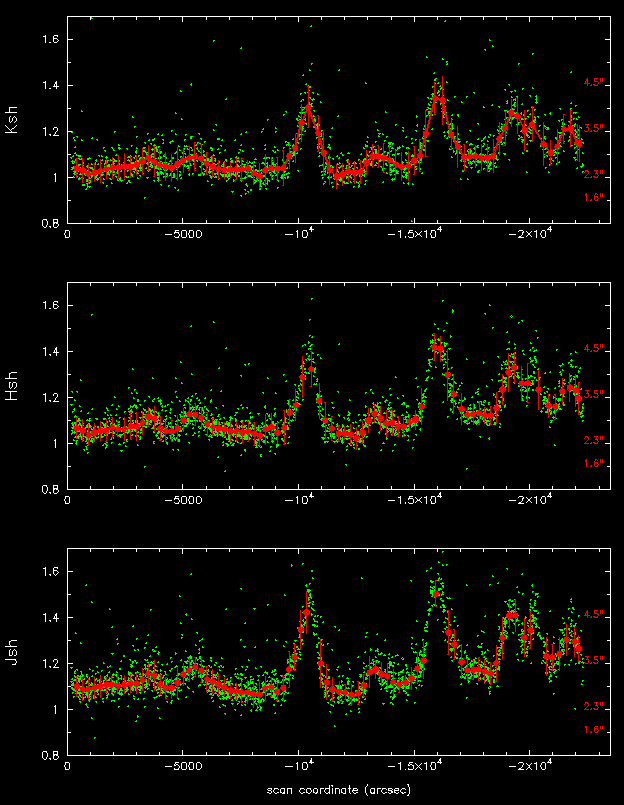

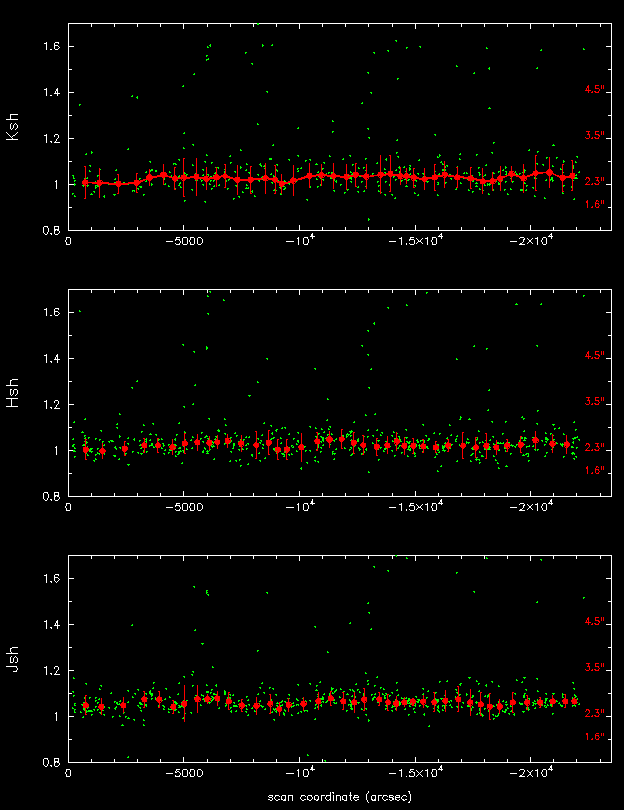

For the time-variable "seeing", we use the ridgeline to characterize the
radial extent of the PSF. Two very different examples are illustrated in
Figures 5 and
6. The figures show the median "shape" values
(large filled circles) along the scan. Extracted sources (including stars and
galaxies) are denoted with small points. The approximate (Gaussian-derived)
FWHM of the PSF is also shown, to provide some idea of the angular scale in
arcseconds and the approximate relation between
×
"shape" and the more standard PSF FWHM. Note that these two measures are not
uniquely related, but instead provide a more
general relationship. In Figure 5 we show
the resultant ridgeline for a scan
passing through the Hercules Cluster of galaxies. The stellar number density
is not large (Galactic latitude of Hercules is about 30°), but there are
still plenty of isolated stars
easily separated from the cluster sources which are located above the mean
"shape" ridge of stars. The seeing is fairly stable for each band all
throughout the 6° scan, spanning ~6 minutes of time. The same cannot be
said for the second case, Figure 6, which
demonstrates
both poor seeing conditions and very rapid changes in the PSF. Fortunately,
the stellar density is relatively high in this field, ~4000 stars per
deg2, and the rapid seeing diversions are, for the most part,
sufficiently tracked. Scans for which the seeing is poorly tracked or the
absolute value of the mean scan seeing is greater than 1.3´´
(~PSF FWHM > 4´´)
are considered low-quality data and were in most cases scheduled for
re-observation.
Extended sources lie above the ridgeline defined by stars. We can reliably
begin to separate stars from resolved sources at ~2 to 3 times the spread in
the "shape" ridgeline. More generally, we can assess the "extendedness" of a
source by how far it lies from the stellar ridgeline. The radial "shape"
(×), or simply
SH, of a source is compared to the stellar ridge value,
SH0 , and an N- "score" is
computed as:
where SH0 (t´) and
SH0 (t´)
denote the time-variable ridgeline value and its associated uncertainty and
SH(t), the
source value, with time t´ as close to actual t as
possible. The PSF ridgeline value is stable over all flux levels, so only one
value is needed per time interval. The 2MASS database name for the
SH "score"
parameter is "<band>_sc_sh".
The SH uncertainty includes both measurement
error and the intrinsic PSF spread. However, since SNR > 10 stars are
plentiful in most areas, the measurement error is minimal compared to the real
spread in the PSF. The uncertainty represents the RMS in the SH
distribution, but the distribution has
triangular-shaped wings (i.e., the scatter in SH falls off linearly),
due to the undersampling (in the original frames)
and sub-pixel dithering to optimally coadd the frames into Atlas Images.
Consequently, stars will not have SH values above
a threshold of ~2· SH0,
but galaxies and other relatively
"extended" objects (e.g., double stars) will have scores >2. In the
following subsections we will describe how we separate real extended sources
(e.g., galaxies) from false extended sources (e.g., double stars) using
several different flavors of stellar ridgelines.
Characterizing the Point Spread Function
(Eq. IV.5.2)
The Radial "Shape" of Galaxies and Stars
Stellar Ridgelines and Tracking the PSF
(Eq. IV.5.3)
Figure 5 | Figure 6 |
vi. Star - Galaxy Discrimination
The ability to separate real extended sources (e.g., galaxies, nebulae, H II
regions, etc.) from the vastly more numerous stars detected by 2MASS is what
fundamentally limits the reliability of any extended source catalog. Single
isolated point sources represent the purest and easiest construct from which
extended sources must be distinguished. More complicated constructs include
"double" stars and "triple+" stars; these are generic labels that include both
physically-associated multiple systems and (more likely) chance superposition
of stars on the sky. The permutations and combinations of multiple-star
characteristics (radial separation, flux difference, color difference, etc.)
make them a challenge to separate from real galaxies. The surface density of

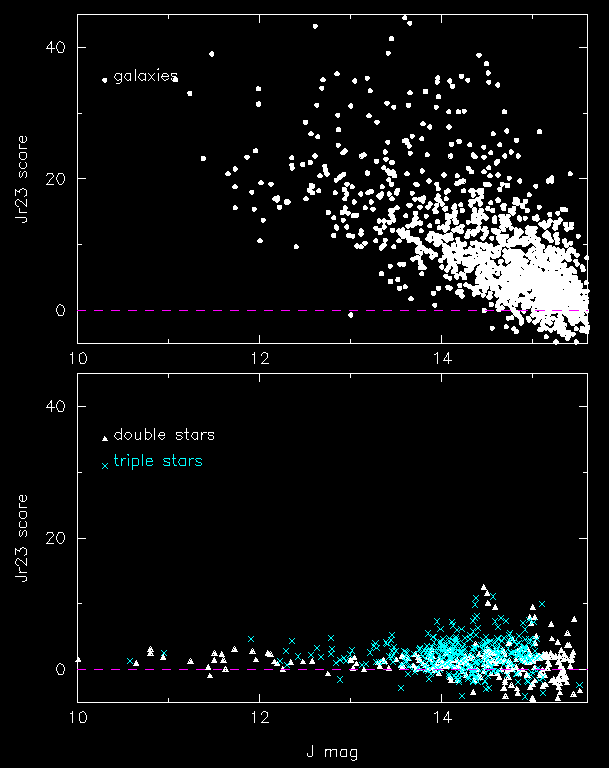

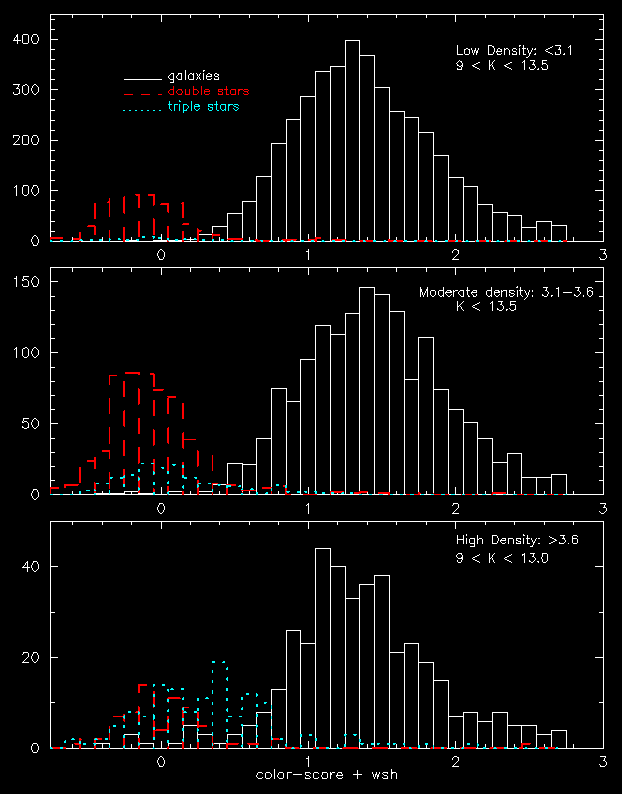

stars and galaxies is illustrated in Figure
7. Double stars are less than ~2% of
the total stellar count at high Galactic latitudes, but begin to dominate the
total numbers for |b| < 5°. Even at moderate
stellar number density, double stars are comparable in number to galaxies for
typical 2MASS flux levels.
There are many competing methods for separating stars from galaxies (or more
generally, "classification"), from the simplest classification and regression
tree methods (CART; e.g., linearly measuring one attribute vs. another), to
2 automated induction (CHAID), to the
more sophisticated Bayesian-based methods (e.g., FOCAS; see Valdes 1982,
SPIE Proc. On Instrumentation in Astronomy IV, 331, 465),
decision trees (e.g., Weir, Fayyad & Djorgovski, 1995, AJ, 109, 2401)
and neural networks (e.g., Odewahn et al. 1992, AJ, 103, 318; Bertin &
Arnouts 1996, A&AS, 117, 393). Each method was
designed in response to increasingly more complicated datasets. For 2MASS, we
were faced with undersampled near-infrared images, subject to a variable PSF
shape, that called for a special adaptation of these procedures.
Early experimentation with existing algorithms (e.g., FOCAS) were
unsatisfactory, due primarily to the severely undersampled 2MASS PSF, which
changes over timescales of minutes. A critical issue for GALWORKS is
to accurately measure and track the time-varying PSF (see
above) while
applying some simple CART-like rules to cull out most of the multiple stars
and artifacts that mimic real extended sources. The resultant extended source
database is approximately 80% reliable for most of the sky. In a
post-processing phase, further refinements, including more complicated
attribute combinations and decisions trees (see
below), are used to produce the
extended source catalog at a reliability of greater than 98% for Ks
< 13.5 mag. Later we describe and discuss some of the more critical
parametric measurements and decision tree operations utilized to that end.
Figure 7 |
The shape parameter is an effective star-galaxy discriminator: isolated stars and "resolved" sources (e.g. galaxies, double stars) are differentiated. In Figure 8 we display the J-band SH scores of three kinds of objects that 2MASS commonly encounters: stars, multiple stars (double stars and triple+ stars), and galaxies. Stars occupy a locus about zero SH score (as a result of defining the stellar ridgeline), while multiple stars lie well above the ridgeline along with galaxies and other "fuzzy" sources. The number of stars displayed has been reduced by a factor of 10 relative to the other plots in order to show the scatter in shape for the ridgeline vs. magnitude. The SH score is very effective at separating isolated stars from galaxies at flux levels as faint as J~15.4 mag.
Other GALWORKS-derived image parameters that are also effective at separating isolated stars from extended sources include the first and second intensity-weighted moments (2MASS database name are "<band>_sc_1mm" and "<band>_sc_2mm", respectively), ratio of the central surface brightness to the integrated brightness ("<band>_sc_mxdn"), and differential areal measures (e.g., isophotal area; "<band>_d_area"). Unfortunately, like the radial SH parameter, none of these diagnostics can discriminate galaxies from sky-projected clusters (i.e., double and triple+ stars) to the degree necessary to meet the Level 1 requirements. Double stars are particularly vexing due to their sheer numbers at |b| < 20° (Figure 7). Double stars (and triple stars near the Galactic plane) are clearly the primary contaminant of the galaxy database. More intricate attributes are needed to exploit the differences between groupings of point sources and genuinely extended sources.

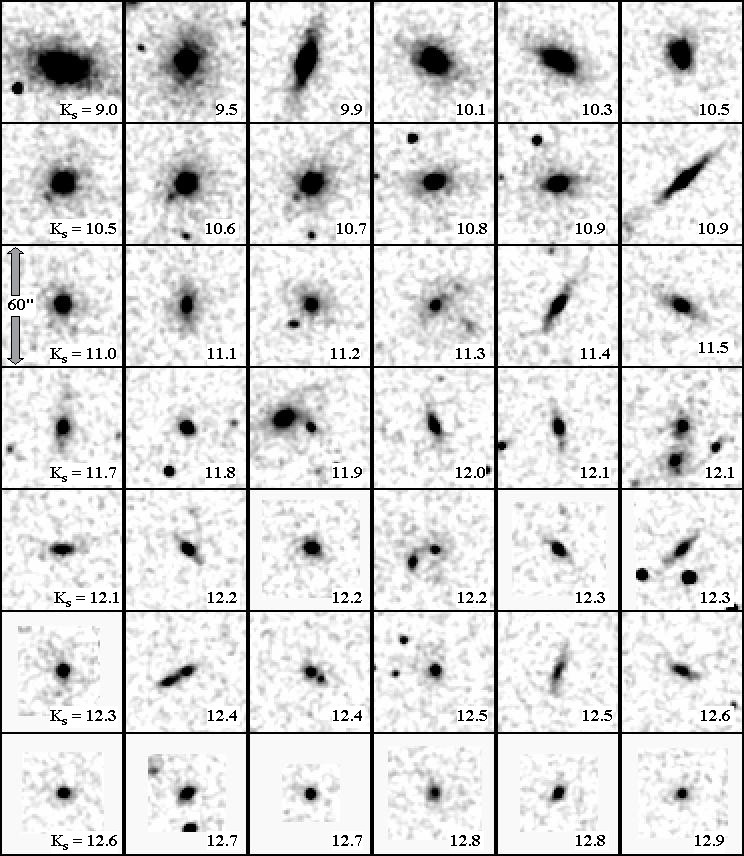

Figure 8 |
In the near-infrared, the observed morphology for galaxies usually has smooth
radial and azimuthal profiles. Spiral galaxies have much more even light
distributions in the near-infrared than optical because the absorption is
greatly reduced and the emission is dominated by older stellar populations,
including low mass dwarfs and red giants, which are less concentrated in spiral
arms. Features commonly seen at the radio and optical wavelengths, including
H II regions, supernova remnants and dust lanes, are generally difficult to
detect in the near-infrared except in the nearest galaxies;
Figure 9 shows a few
large angular scale galaxies located in the Virgo cluster. Only the relatively
rare cases of galaxies subject to strong tidal or hydrodynamical interactions
exhibit significant asymmetry in the near-infrared bands.
In contrast, multiple stars, and in particular double stars, are not
radially symmetric about their "primary" peak-pixel center. Here the primary
center of light of a multiple star corresponds to the brightest member in the
group, or more specifically, the peak pixel associated with the brightest star,
but can be in between for pairs of stars of equal brightness. We should point
out an important feature of GALWORKS: it does not
assume that a resolved object (i.e., two or more detections in close proximity)
is a double or triple star, since real galaxies may be also be
multiply-detected (in particular, bright edge-on galaxies may induce several
detections along its disk). Hence, we do not make a distinction between double
stars that are resolved or unresolved with respect to the PSF. Instead, we
must apply other tests to decide whether an object is truly "extended" or not.
Below we describe the methods that are utilized in the pipeline
GALWORKS software.
The near-infrared symmetry of galaxies can be exploited to differentiate
between multiple stars that otherwise mimic extended sources.
Figure 10
illustrates a variety of double stars seen in 2MASS images. For comparison, a
set of galaxies of approximately the same integrated brightness as that of the
double stars is also shown in the lower panels. Both sets of sources were
classified using higher resolution (~1´´ PSF)
optical imaging data and with the Digitized Sky Survey image data (see also
below for a description of the "training sets").
Surface brightness
profiles and colors distinguish true extended sources from point-like objects
(in this case, double stars). For double stars, the fainter star ("secondary"
component) breaks the symmetry about the primary. Hence, the signature of a
double star is an asymmetric azimuthal profile.
Multiple Star - Galaxy Separation using Symmetry Metrics
Figure 9 | Figure 10 |
So as not to enforce a strong bias against asymmetric or foreground-contaminated galaxies, the various "symmetry" parameters and metrics used to discriminate galaxies from stars (described below) are used judiciously in conjunction with non-biased parameters (e.g., SH). Here we employ two different strategies at forming symmetry parameters. The first is to exploit the measured 2-dimensional orientation of the source, and the second is to utilize the generalized PSF function (Eq. IV.5.2) under scenarios in which the degree of asymmetry in the object can be measured.
Once the general orientation of the galaxy is derived (see above), the "symmetry" of the object can be appraised. As discussed earlier, the radial and azimuthal symmetry of an object is a good indicator of its true nature. Double stars appear asymmetric across the minor axis-since the ellipse is centered on the primary component of the double star. This is also generally the case for triple stars, although there are maddening configurations of 3 stars in which the alignment is symmetric across both the minor and major axes.
One way to measure the "symmetry" of an object is to perform a bi-symmetric flux comparison between the two half-sides as defined by the minor axis (see above). Perfectly symmetric objects will have a flux ratio that is equal to unity. We may also cross-correlate the pixel-values in the two halves by simply rotating one side 180° with respect to the other and multiply the resultant pieces. The desired asymmetry "measure" is then the sum, normalized by the total integrated flux squared. To minimize the effects of noise and the shape of the PSF, very low SNR points (< 1.5) and the inner 3´´ core are avoided in this procedure. A more elegant variation on this method avoids the deleterious effects of low SNR points; namely, we perform the cross-correlation with a reduced 2 function of the form,
(Eq. IV.5.4) |
where p and p* are pixel values at points 180° apart, N is the number of points being compared, and is the pixel noise (but ignoring the noise contribution of photons from the source itself). This 2 measure has the multiple advantage that it has a distribution that is well understood statistically with tabulated confidence ranges, there are no asymmetries in the distribution like those introduced in a ratio comparison, and it is insensitive to low SNR or data points near zero. The final symmetry measure comes from the object orientation "goodness of fit" parameter (Eq. IV.5.1). The 2MASS database names are "<band>_bisym_rat", "<band>_bisym_chi" and "<band>_chif_ellf", for the bi-symmetry flux ratio, cross-correlation and ellipse "goodness of fit" to the 3- isophote, respectively.
A different tactic is to "remove" the secondary and measure the resultant SH (Eq. IV.5.3) of the "deblended" primary. We are, of course, faced with the problem that the emission from both sources are entangled and the primary itself has changed both its radial (SH) width and its azimuthal (symmetry) shape. If the PSFs were exceptionally stable and well characterized as such, then in principle it would be possible to satisfactorily de-blend the multiple sources into their constituent parts. Since this condition is not always realized, and moreover the runtime for this kind of multiple PSF 2 fitting is prohibitively long, we are left with less ideal methods.
The simplest approach is to remove the secondary using a median filter in annular shells about the primary: GALWORKS refers to the resultant measure as the "median shape" or MSH (in the database it is called "<band>_sc_msh"). A more satisfactory (if more complicated) approach is to mask the secondary and measure the residual emission from the primary, using a 45° wedge or pie-shaped mask that is rotated about the vertex anchored to the primary. The optimum configuration in which the secondary is effectively masked is found by rotating the wedge mask through all angles (Figure 11). The SH score is then computed for the remaining area (360° - 45°). If the secondary star is masked, then the resultant SH score will be minimized, ideally with a value corresponding to an isolated star. In practice the secondary can never be fully masked, and the peak pixel does not represent the true center of the primary since it is slightly shifted toward the secondary-thus resulting in a slightly inflated SH score relative to that of an isolated star. Nevertheless, the "wedge" shape score, or WSH (in the database it is called "<band>_sc_wsh"), is an effective discriminant. This is demonstrated in Figure 12, which is analogous to Figure 8; here we show the distribution of multiple stars and galaxies as measured in the WSH vs. magnitude plane.
The wedge shape score for double stars is considerably smaller than the corresponding SH score, having values typically less than 5 for J < 15 mag, while galaxies remain "extended" in this measure with scores >5 for J < 15 mag. Note however, triples+ stars are only occasionally identified as such by the WSH score since the additional two secondary components usually defeat the single rotating mask method. For triple stars, yet more severe "symmetry" constraints are required.
Triple stars are geometrically more difficult to characterize because of the number of possible combinations of integrated flux and primary-secondary separations. For most triple stars there is minimal contamination from the two secondary components along some radial direction from the primary. If we measure the radial SH of this vector and compare it to the corresponding ridgeline value, the resultant "score" should be close to that of an isolated star. Thus the basic method is to measure the SH along an azimuthally distributed set of vectors at angular separations of 5°. The vector corresponding to the "minimum" shape score (referred to as the R1 score; in the database it is called "<band>_sc_r1") is susceptible to background noise fluctuations since we are restricting the (, ) fitting operation to less than a dozen pixels. For galaxies, the R1 score tends to select against galaxies that are edge-on and thus have minimal (but still measurable) extended emission along the minor axis (i.e., the vector corresponding to the minimum radial SH score).
A more robust parameter, but slightly less effective at removing the influence of the secondary components, is to average the second and third lowest SH value vectors. This score is referred to as the R23 shape score (in the database it is called "<band>_sc_r23"). Here we are relying upon the fact that most triple star configurations (but not all by any means) will have more than one vector that is only minimally affected by the secondary components. Galaxies, meanwhile, are generally extended in all directions, and so the R23 score is not much different from the SH score except for the faintest galaxies (J > 15, Ks > 13.75 mag) which are at the mercy of noise fluctuations.
The effectiveness of the R23 score is demonstrated in Figure 13. Here we plot the R23 vs. magnitude phase space. It can be seen that the triple stars are now well under control with minimal loss to the galaxies at J < 14 mag. For the faint magnitude bins, J > 14 mag, galaxies are not well separated from triple stars. Fortunately, triple stars are only relatively abundant when the stellar number density is very high (i.e., the Galactic plane; see Figure 7), which means that the "confusion" noise is also high (that is, the random fluctuations in the background due to faint stars; see IV.5g), rendering the sensitivity limits for galaxy detection itself from 0.5 to nearly 2 magnitudes brighter than the high-latitude 2MASS limits. Thus, just as the problem with triple stars becomes significant, the practical detection thresholds are correspondingly decreased, the end result is that the R23 score is an effective star-galaxy discriminator for flux levels up to the detection limits. For the most extreme stellar number density cases (e.g., in the Galactic center region), >105 stars deg-2 brighter than Ks=14 mag, quadruple ++ stars become significant, at which point there is little that can be done to separate galaxies from clusters of stars.
We have developed additional parameters designed to discriminate triple stars from extended objects, including measuring the linear flux gradient along radial vectors and the integrated flux gradient along radial "column" vectors (referred to as the VINT score; in the database it is called "<band>_sc_vint"). Similar to the R1 and R23 scores, these methods rely upon the "minimum" column integrated flux or gradient in the column flux to be similar to that of isolated stars. They are not quite as effective as the SH vector scores, but since they are only slightly correlated, they can be used in combination with the other attributes when using a decision tree classifier.
Figure 11 | Figure 12 | Figure 13 |
Preliminary flux estimates come from the point source processor, which uses a characteristic PSF to derive total fluxes (assuming a point-like flux distribution). These measures systematically underestimate the flux of extended sources. Hence, one of the first tasks for GALWORKS is to deduce the nature of a source using some simple radial profile attributes. The median radial shape score, or MSH (see previous subsection), is both quick to compute and a robust discriminator between stars/double stars and galaxies. Applying an extremely conservative threshold to the MSH measure for each source in each band separately eliminates a large fraction of the total number of sources that require more exhaustive testing for star-galaxy separation. If the source is very likely to be extended (large MSH score), then its integrated flux is re-measured using a larger circular aperture.
Before the more time-consuming image attribute measurements are performed on each source (e.g., elliptical shape fitting and adaptive aperture photometry), it is necessary to perform additional star-galaxy separation tests, particularly when the stellar number density is very high, as at |b| < 10°. Thresholds on the SH, WSH, R1, and R23 radial shape attributes (see above) are carried out to eliminate additional non-extended sources (namely stars and double stars) from the source list. For high latitude fields, the remaining sources (in a typical 6° scan) are mostly real galaxies intermixed with a few double stars, one or two isolated stars and low SNR objects of uncertain nature. The reliability is from 50 to 80% at this juncture, and thus the star-galaxy separation process has reduced the fraction of stars to galaxies from 10:1 to approximately 1:1.
vii. Post-processing Star-Galaxy Separation
The 2MASS extended source database is populated with both real extended
sources (e.g., galaxies) and with false sources (mostly double stars), as
designed in order to maximize completeness in the database at the expense of
reliability. We will construct two different kinds of catalogs: an "extended"
catalog and a galaxy catalog. The "extended" catalog is meant to be an
unbiased sample of both galaxies and Galactic sources, and is derived from the
database using simple thresholds on the SH,
WSH and R23 parameters. The
"galaxy" catalog, on the other hand, is specifically generated to produce a
reliable and complete set of galaxies. But, in order to construct a reliable
catalog of extended sources from this database, it is necessary to
perform further star-galaxy discrimination tests; namely, the color attribute
and decision tree classifier, discussed below. We should point out that even
though the galaxy catalog is composed mostly of extragalactic objects,
it will also include Galactic extended sources. We emphasize that the
procedures described in this subsection are performed after the
standard pipeline reductions: their purpose is to generate a reliable catalog
from the database of sources extracted in the standard pipeline.
Two effects make galaxies appear "red" in the 1 to 2µm window: their
light is dominated by older and redder
stellar populations (e.g., K and M giants), and their redshift tends to
transfer additional stellar light into the 2µm
window (for z < 0.5), boosting the Ks-band flux relative to the
J-band flux. The latter phenomenon is often called the "K correction,"
although the "K" here is unrelated to the infrared atmospheric-window band.
Because of this, the J-Ks color attribute can be used in
conjunction with color-independent discriminants, like the WSH
score to cleanly separate extragalactic objects
from stars. As a bonus, the color separation is enhanced in the Galactic plane
where double and triple star contamination is severe. This is because
galaxies are subject to a larger dust column compared to field stars along the
same line of sight. In Figure 14
we demonstrate the effectiveness of the
J-Ks color to separate stars from resolved galaxies in a diverse
set of fields, including areas well above the Galactic plane, referred to as
low stellar density fields (<103.1 stars deg-2
brighter than Ks=14 mag), areas closer to the plane
(|b| > 5°), referred to as moderate density fields
(<103.6 stars deg-2; see
IV.5c), and finally areas in the Galactic plane in
which the stellar number density is very high (>103.6 stars per
deg2 brighter than Ks=14 mag). For the
latter case, the differential confusion noise is typically very high
(equivalent to ~1 mag in surface brightness) so the sensitivity limits
have been decreased accordingly (note: the differential confusion noise refers
to the effective loss in surface brightness sensitivity, relative to the
Galactic pole, due to stellar confusion noise, expressed in mag units; see
IV.5g for details).
A J-Ks color of ~1.0 mag appears to be a reasonable compromise for
separating stars from galaxies. For flux levels relevant to the 2MASS Level 1
specifications, Ks < 13.5 mag, a J-Ks color limit of 1.0 mag
eliminates nearly all (>95%) double stars that mimic galaxies, while more
than 90% of the total galaxy distribution has a color greater than this limit.

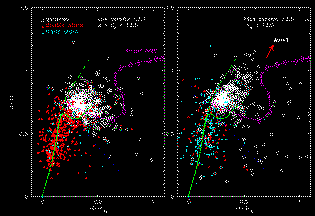

Another way to view the color separation between stars and galaxies is within
the J-H vs. H-Ks color plane,
Figure 15. Here we include the stellar
main sequence track, showing the divergence of giants from dwarfs at
H-Ks > 0.3 mag. In addition, we show the K-correction track for
spiral galaxies derived from the models of Bruzual & Charlot (1993,
ApJ, 405, 538). When
the surface density of stars is high the extinction is also on the rise,
clearly seen in the right panel of
Figure 15.
At fainter flux levels, Ks > 13.5 mag, the scatter in the integrated
flux (and thus colors) is large enough that non-galaxies (i.e., double and
triple stars) can scatter above the J-Ks color limit and galaxies
can have colors that scatter below the limit to a degree that contamination
and completeness is significantly compromised if the J-Ks attribute
were used as the lone discriminant. Moreover, for all flux levels, a
J-Ks threshold would impart an undesirable selection bias against
blue galaxies. To minimize color biases, the J-Ks attribute can be
combined with the radial shape attributes to form a new powerful discriminant.
First, the color-color plots suggest a more optimum method to use
JHKs colors to measure the "redness" of a galaxy. Galaxies are not
only preferentially redder than 0.9 mag in J-Ks, but they also have
H-Ks values, >0.2 mag, redder than most stars. Hence, we define a
"color score" as the color distance in J-H vs. H-Ks space
from the line corresponding to J-Ks = 0.9 mag to within a scaling
factor. For objects redder than 0.3 mag in H-Ks, we also factor in the
H-Ks color to exploit this feature in the JHKs color
space. Mathematically, we express the "color score" as:
which adds the color "distance" (to within a scaling factor) from the dotted
line in Figure 15. For sources with
(H-Ks)>0.3 mag, the color score reduces to:
Figure 16 demonstrates the
combination of color score and WSH. This combination alone is
capable of providing
better than 95% reliability (Ks < 13.5 mag) with only a few percent
loss of galaxies to the total population. We can do better still by using all
of the attributes simultaneously with a decision tree classifier. It should be
emphasized that no sources are eliminated from the extended source
catalog by their color alone, but the color score is a necessary component
toward generation of a reliable galaxy catalog.
The Color Attribute
(Eq. IV.5.5)
(Eq. IV.5.6)
Figure 14 | Figure 15 | Figure 16 |
Three classes of attributes have been discussed thus far: radial extent or
shape (SH, R1, R23), symmetry or azimuthal shape
(WSH, MSH, flux ratios) and flux or photo-metrics
(VINT, "color score", total flux, and central
surface brightness relative to the total flux). To determine the best
combination of parameters to use for galaxy discrimination we have a
nine-dimensional space to probe. Complicating matters, with a principle
component analysis we find that several of the attributes are highly
correlated (e.g., WSH and MSH, not surprisingly) and others
weakly correlated
(e.g., WSH and the bi-symmetric flux ratio),
which means that a simple or weighted combination of the attributes to form a
"super" attribute is not optimal. We may either combine a few of the attributes
that are not strongly correlated (e.g., color score and WSH and
R23), e.g., Figure 16,
or employ a decision tree induction method (Breiman et al. 1984, Classification
and Regression Trees) to more
effectively combine all or at least most of the attributes (with judicious
pruning; see below).
In the last few years, decision trees and their close cousins,
machine-learning artificial neural networks, have been used by astronomers to
aid image classification (e.g., Weir et al, 1995, AJ, 109, 2401; Odewahn et al.
1992, AJ, 103, 318; Salzberg et al. 1995, PASP, 107, 279; White 1997, in
Statistical Challenges in Modern Astronomy II, p. 135).
With fast computer technology these methods
provide an efficient means to analyze multi-dimensional data. We have adopted
one particular type of decision tree, called the oblique-axis decision tree,
but there are many others that would probably also be effective.
Decision tree methods, like "supervised neural networks," require a
training set of pre-classified data composed of all combinations of stars
(isolated, double, triple, etc.), galaxies, and artifacts. This "truth" set is
used to generate the decision tree, or a structured set of classification
rules. The tree divides the training set information into disjoint subsets,
each of which is described by a simple rule on one or more parameters. Using
the analogy of a tree, the rule structure contains "nodes" of branching test
points with the final nodes in the tree representing the "leaves" or final
classification. For example, one node might represent a test of the
WSH score, comparing the score to some threshold, T,
WSH score > T ?
NO: classify as non-galaxy
YES: continue to next node
This is an example of an "axis-parallel" decision. That is to say, the
parameter or object attribute embodies a set of hyperplanes (in the
multi-dimension phase space) that are parallel to each other.
Figure 17
demonstrates a two-featured, hyperplane: WSH
score vs. J mag with galaxies denoted by filled circles and
non-galaxies by
crosses. The non-galaxies are mostly double stars in this example. The dashed
parallel lines represent the axis-parallel "rules." To the right (or above)
the lines are the galaxies; to the left (and/or below) the lines are the
non-galaxies. Axis-parallel rules have the advantage of being simple to apply
and track within a large complicated tree. But it is obvious from the example
plot that a better rule is to use an "oblique" line separating the two
populations or features. The solid line in
Figure 17 is an example of an
oblique-axis ruling. An oblique decision tree uses both axis-parallel and
oblique-axis tests at the nodes. Mathematically, the node test has the linear
form:
where object O possesses n attributes, with a coefficients or
weights defining the n-dimensional hyperplane. For the reduced axis-parallel
case, the sum reduces to aj Oj > T.
Although oblique
hyperplanes are just a series of linear combinations, the total possible number
of solutions is very large and thus finding the correct one is daunting, if
not impossible under some conditions. In fact, the problem is NP-Complete, or
ultimately limited by the runtime of the machine. Fortunately, in practice
reasonable decision trees can be generated with clever deduction algorithms
and techniques to avoid "traps" or local minimum solutions.
Oblique Decision Tree Classifier
(Eq. IV.5.7)

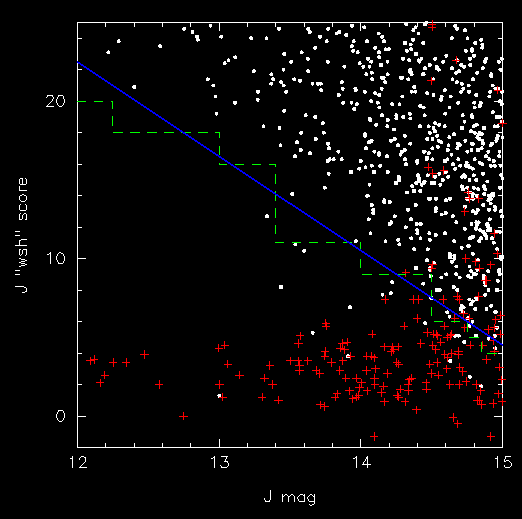

Figure 17 |
One such package was developed by Murthy et al (1994, "A System for Induction of Oblique Decision Trees", JAIR, 2, 1) called OC1, or Oblique Classifier 1. OC1 uses random perturbations to walk around traps and arrive at satisfactory hyperplane solutions for each node. The resultant tree may require "pruning" or stripping of branches that add little to the final classification, or worse, detract from the correct solution due to over-fitting of the training set. OC1 applies pruning methods, e.g., Cost Complexity pruning (Breiman et al 1984, Classification and Regression Trees), which effectively prunes the decision tree by removing the insignificant or "weak" branches. For the problem of over-fitting, in addition to pruning, the best solution is to minimize the total number of attributes per node. For 2MASS galaxies, nine attributes including the integrated flux characterize each source. The attributes are correlated to one degree or another, so it is not obvious which can be eliminated from the decision tree process. A principal component analysis does indicate which parameters are key to the success of the decision tree. Additional trial and error experimentation with the training sets provide further clues as to the level of pruning that our decision tree requires. One disadvantage that decision trees have with classification of galaxies is that the final classification does not have an associated uncertainty or probability that the classification is correct. For 2MASS galaxies, we can "assign" a pseudo-probability by using a weighted average of the decision tree classifications for each band (which are computed independent of each other, except for the color attribute which; see below). These parameters are identified in the 2MASS database as "g_score" and "e_score" (see also Table 1).
The 2MASS star-galaxy separation problem is well suited to an oblique decision tree technique. Accordingly, we have applied the OC1 technique to large data (training) sets of 2MASS extended sources and non-galaxies (stars, double stars, triples, etc.). The training sets were constructed by carefully analyzing large swaths of sky, including ones with galaxy clusters, low stellar density (high galactic latitude) and high stellar density (Galactic plane) fields, totally over 50,000 sources in over 1000 deg2 of sky. The training sets are comprised of galaxies, stars, double and triple stars, nebulae, artifacts and sources that cannot be decoded. Each source was visually examined with 2MASS image data and with independently-acquired optical-wavelength data, including deep high-resolution CCD images (typically at R-band) or images from the Digitized Sky Survey (DSS). The DSS is well matched to 2MASS, both having similar resolution and sensitivity (for normal color galaxies), at least outside of heavily-extincted regions. We also cross-identified with astronomical databases (e.g., NED and SIMBAD), and, for some cases in which the reddening is severe (for |b| < 5 to 10°, the DSS is largely ineffective), obtained additional radio or deep infrared data. Previously identified/catalogued sources in the Galactic plane tend to be foreground nebulae, such as H II regions, which have very red colors, J-Ks > 1.5 mag, typically redder than extragalactic sources. We assign categories as follows: (1) extended, (2) stellar or point-like, (3) double star, (4) triple star, (5) artifact, and (6) unknown. The latter refers to our inability to decipher the nature of some sources (almost exclusively low SNR objects). Artifacts arise from two primary sources: bright stars and transient events (e.g., meteor streaks). As a final caveat, there will always be cases in which the classification is incorrect (e.g., mistaking a faint double star for a galaxy), but our training sets are constantly scrutinized and cleaned of falsely-classified sources. We believe the training sets are reliable to better than 98% for sources as faint as SNR = 7.
The training sets are divided into three density domains: low stellar density fields (<103.1 stars deg-2 brighter than Ks=14 mag), moderate (103.1 to 103.6 stars deg-2), and high (>103.6 stars deg-2 brighter than Ks=14 mag). These are further divided into subsets depending on the integrated flux of the source. The latter step minimizes the severe dynamic range (in flux) that 2MASS must consider, from the brightest galaxies (Ks < 9 mag) to the faintest galaxies (Ks ~ 14 mag). The training sets are large and diverse and thus provide a suitable induction test bed for the decision tree algorithm. We find that the OC1 decision tree classifier improves the galaxy catalog reliability by several percent, from 91% to ~97% (for sources brighter than 13.5 mag at Ks), compared to just using simple CART or axis-parallel tests. The trend persists in regions of high stellar number density where double and triple stars are a serious contaminant. Future work to refine the decision trees will focus upon further pruning of the trees and upon possible elimination of "weak" and highly correlated attributes. It may also prove fruitful to evaluate other decision tree methods (for example those developed by Weir et al. 1995, AJ, 109, 2401; Fayyad 1994, in Artifical Intelligence AAAI-94, 6601) and, possibly, neural network methods, particularly if morphological classification is attempted with 2MASS imaging data.
viii. Bright Extended (Fuzzy) Stars
Bright fuzzy stars are identified using a separate algorithm within the
GALWORKS pipeline (Figures 1 and
2). This operation is
referred to as the "bright extended source" processor. The basic method is to
look for emission in and around the source at levels elevated above that
expected for a bright star characterized by the PSF. The following gives a
brief (high-level) description of the method. To date, no results from this
method have been publicly released.
This is a difficult task given that bright stars are rife with nearly
insurmountable complexities (see
below). The algorithm measures residual
emission around the bright star after nearby stars have been masked and the
source itself has been removed based on the shape of the PSF and the measured
flux of the star. We calculate the root mean square of the residual emission
vs. the mean background AND vs. a zero background (i.e., assume the true
background level is zero). The RMS values are then normalized by the measured
noise for the Atlas image as a whole. Stars with associated emission,
like reflection nebulae, will usually stand out in either measurement. Sources
with a significant RMS deviation from the norm are extracted to the 2MASS
database. A special catalog is to be released at some date in the future.
There are no set requirements for these kinds of objects and the completeness
and reliability of this supplemental catalog are unknown at this time. Examples
of sources found with this technique are shown in
Figure 18, from scans
crossing the Orion Trapezium and the Large Magellanic Clouds. The top row
shows J-band "postage stamp" images, middle row the H-band and bottom row the
Ks-band images. Each image is 50´´ in
width. The integrated flux for the example sources range from magnitude
5 to 7 at 2.2µm.
Figure 18 |
There are some galaxies whose central surface brightness is too low to
be detected by the standard 2MASS procedure, but whose total integrated flux
is significant (at least with respect to the 2MASS Level 1 specifications).
These may include low surface brightness (LSB) galaxies, and dwarf or
intrinsically small galaxies. We will refer to these sources with the generic
moniker: low central surface brightness galaxies (LCSB). LCSB galaxies present
a different challenge to GALWORKS than the typical "normal" galaxy 2MASS
encounters. They are generally very faint (as measured in a standard aperture
for "normal" galaxies) and they do not have well defined cores;
see Figure 19
for examples of typical low central surface brightness galaxies found within
2MASS (Each image is 25´´ in width.) The
integrated flux of the example sources range from J=15 to 15.6 and
Ks=13.8 to 15.1 mag. The LSB galaxy nature of many of these sources
is confirmed with deep optical images. There are some examples of galaxies
observed to be low surface brightness in the near-infrared but normal in the
optical-typically blue spiral galaxies.
Low Central Surface Brightness Galaxies
Figure 19 |
The galaxy core is an important component for star-galaxy separation since many of the parametric measurements for star-galaxy separation are anchored to the core of the galaxy. The low central surface brightness detector (referred to as the LCSB processor) of GALWORKS is executed last in the chain of operations that comprise GALWORKS (see flowchart, Figure 2). The input to the LCSB processor is a fully cleaned Atlas image in each band, where stars brighter than some limit, typically Ks = 14.5 mag, and previously found extended sources have been entirely masked. The image is then blocked up (using three independent kernel sizes: 2×2, 4×4 and 8×8 pixels) and "boxcar" smoothed to increase the S/N for large (but faint) objects normally hidden in the 1´´ correlated pixel noise. A block average is not the optimum method (as compared to a gaussian convolution, for example) but with pipeline runtime constraints it is a more satisfactory option.
The detection step consists of 3- threshold isolation of local peaks in the blocked-up cleaned images. Source detections are then parameterized (using the blocked and smoothed image) with the primary measurements being: S/N of the peak pixel, radial extent (SH score), integrated S/N, surface brightness, integrated flux, and SNR measurements using a J+H+Ks combined "super" image. The "super" image, in principle, provides the best median from which to find faint LSB galaxies given the effective increase in the S/N. In practice, the "super" image only increases the SNR by approximately 30%-50% for normal (i.e., J-Ks ~ 1 mag) galaxy colors. Faint stars remaining in the cleaned image have a relatively low SNR since most of their light is confined to a few pixels that are averaged with blank sky in the blocking and boxcar-smoothing step. Galaxies, on the other hand, will add up since their light is distributed over a larger area.
The preliminary results for the LCSB processor demonstrate a reliability rate of about ~70 to 80% using a threshold on the "maximum" SNR (between 2×2, 4×4 and 8×8 blockings) of the "super" image. The major contaminants are faint stars and diffuse emission associated with bright stars. However, if a meteor streak (or other transient phenomenon) is present in the Atlas image(s), then numerous false sources are picked up as LSB galaxies.
We are still learning how to improve the reliability of sources coming from the LCSB detector. It is important to note that these sources are nearly always fainter than the Level 1 specifications (Ks > 13.5, J > 15 mag) which means that there are currently no requirements on the incompleteness and reliability. We do not anticipate significant completeness failure for LSB galaxies brighter than Ks ~ 13.5 mag. The fainter LSBs, however, will have to be detected and processed with the LCSB processor described here and released in a future special catalog. Enhancements of the algorithm described here are being studied, in particular, the multi-color "2 image" technique described in Szalay et al. (1999, AJ, 117, 68) may prove to be a more robust and reliable technique at finding LCSB galaxies in the 2MASS database. Further information and some early science results with 2MASS LSB galaxies can be found in Jarrett (1998, in The Impact of Near-Infrared Sky Surveys on Galactic and Extragalactic Astronomy, p. 239) and Schneider et al. (1998, in The Impact of Large Scale Near-IR Sky Surveys, p. 187).
ix. Source Extraction
Sources that pass the star-galaxy discrimination tests and have an integrated
flux brighter than the mag limits: J= 15.5, H = 14.8, Ks = 14.3 mag
(MINUS the confusion noise for high source density fields), are extracted to
the 2MASS extended source database. In addition to the parameters described in
previous subsections, the source information includes various flags indicating
stellar contamination, cross-identification (with previously catalogued
large galaxies derived from the NASA Extragalactic Database) and
processing status. A list of the "standard" extended source parameters can be
found in Table 1.
For each extended source, a small "postage stamp" image is clipped from the
larger background-subtracted Atlas image. The stamp images are stored in J, H
and Ks fits-format data cube files (see II.5
for an example
of a header). The image size is constrained by the final Kron or isophotal
radius, with a minimum diameter of 21´´ and a
maximum diameter of 301´´. The dynamic image
size reflects the practical limitation of the finite storage capability of the
2MASS database. The stamp image headers provide all of the information needed
to extract photometry, positions, etc., except the larger-area environment
that was used to remove a local background (above)
and evaluate contamination. For that reason the images include the background
removed during the process described above.
Since the background is already
removed, it is a simple matter at computing source fluxes, they can be directly
read (or summed within some aperture) from the images. The conversion of a
2MASS unit of flux ("dn" for data number, corresponding to the pixel value) is
as follows:
where f is the background-subtracted flux (in "dn" units),
m0 is the zero point calibration magnitude, and m is
the desired (calibrated) magnitude. Consider the example given in
IV.5g. Here the zero point
calibration at Ks is 20.111 mag, while the image "noise" (RMS of
the background) is 0.879 DN. It then follows that the
1- RMS in the Ks background is
20.250 mag/arcsec2 (note that this RMS noise is applicable to size
scales of ~2´´ × 2´´, corresponding to the effective
resolution of the 2MASS survey).
x. Extended Source Objects
The 2MASS extended source database is predominantly
composed of galaxies, with a much smaller population of double and triple
stars, at the 5 to 10% level depending on the stellar number density
(see IV.5c).
Large-angular size Galactic objects, such as HII regions, stars with
nebulosity, planetary nebulae, reflection nebulae, etc., are relatively rare
and generally confined to the Galactic plane and a few other star formation
sites around the Milky Way.
The extended source catalog is contaminated by a small <1% number of
artifacts.
These false sources are generated in the vicinity of bright stars, by
transient phenomenon, such as meteor streaks, and by infrared "airglow". Most
artifacts associated with bright stars are easily identified within the 2MASS
database using simple geometric removal algorithms, but which are not 100%
effective. Meteor streaks are more difficult to identify using automated
techniques, but in general their frequency is low. Airglow not only generates
false detections (especially under severe conditions), but it also
significantly affects the photometry of real sources. Examples of 2MASS
galaxies and various kinds of artifacts are given below.
The 2MASS extended source database contains galaxies ranging in brightness
from Ks=0 to 14 mag. This flux range is
constrained by the sensitivity of the survey. The brighest and largest galaxies
were processed using a special pipeline that was designed to capture all of the flux
from the object. See the
2MASS Large Galaxy Atlas (Jarrett et al. 2003, AJ, 125, 525).
In Figures
20,
21, and
22,
a representative sample of galaxies from low stellar number
density fields is shown with their Ks-band postage stamp images.
The data come from scans passing through the Abell 3558, Hercules, & Abell
2065 clusters, as well as random non-cluster fields. A wide range in
morphology, surface brightness and integrated flux comprise the sample.
Figure 20
shows bright galaxies, ranging in total Ks-band flux from
9 to 13 mag. Each image is 60´´ × 60´´,
demonstrating several morphological classes:
elliptical (E), lenticular (S0, SA0), generic spiral (S), and complex
irregular, including double nucleus, interacting and pre-merger systems. The
next set of galaxies, Figure 21, represent
the faint limit at which the extended source catalog is both reliable
(>98%) and complete (>90%), with
Ks ranging from 13 to 13.5 mag. The size of each
image is 30´´ × 30´´. The final set of galaxies
(Figure 22)
represent the faintest galaxies resolved with 2MASS, with Ks
ranging from 13.5 to 15 mag, corresponding to a SNR range between
4 and 8. Each image is 20´´ × 20´´ in width. The
lowest surface brightness galaxies belong to this set, which are generally
detected only in J-band due to the blue color of most LSB-type galaxies. For
example, the last four galaxies in the set are detected in the J-band only.
(Eq. IV.5.8)
Galaxies
Figure 20 | Figure 21 | Figure 22 |
When the source density is high, the confusion noise approaches the level of the atmospheric thermal background noise (see IV.5g). The probability of triple or multiple stars is significant and the ability to distinguish galaxies from multiple groupings of stars is strained. Nevertheless, a reliability of >80% is possible for most of the Galactic plane. Figure 23 gives examples of galaxies found in the Galactic plane, and for comparison, false extended sources (e.g., triple stars) found in the same areas. For the upper panels, the approximate Galactic coordinates are (240°, +4.5°), corresponding to a density of 4500 stars deg-2 brighter than 14 mag, and a differential confusion noise equivalent of 0.7 mag in a 10´´ aperture (see IV.5g). The integrated Ks-band fluxes range from 11.8 to 13.8 mag. The estimated visual extinction is ~1 mag and the J-Ks reddening is ~0.15 mag. Closer to the Galactic center (Figure 23, middle panels), coordinates (12°, +5.0°), the density of stars is over 30,000 deg-2, resulting in an equivalent differential Ks-band confusion noise of nearly 2 magnitudes; yet, galaxies are still detected by 2MASS. The estimated visual extinction is now >2 mag and the J-Ks reddening is ~0.4 mag. Note the significant stellar contamination to the local environment of the galaxies. The integrated Ks-band flux ranges from 11.0 to 12.8 mag, indicative of confusion noise limits on the faint end detection spectrum. False detections are dominated by multiple stars (mostly triples and quadruples), a representative set is shown in the lower panels, Figure 23.
Figure 23 |
Nebulosity associated with bright stars (e.g., H II regions, PNs, clusters) and with molecular clouds (reflection nebulae, YSOs) typically appear as very bright and large extended sources (Figure 24). Since these objects are primarily located deep in the Galactic plane, contamination by foreground stars is unavoidable.
Figure 24 |
Bright stars are a major nuisance to any image-based survey. Off-axis stray
light can land just about anywhere on the focal plane, while dense
concentrations of light (e.g., diffraction spikes) are distributed
geometrically with respect to the optical axis. Features referred to as
"glints" and "ghosts" are focused or semi-focused reflections of light that
appear as slightly asymmetric point sources or flattened (low surface
brightness) extended sources. Not only do bright 2MASS stars (Ks
< 9 mag) produce diffraction spikes, halos, glints and ghosts, but
the brightest stars (Ks < 5 mag) generate
horizontal stripes that span the entire cross-scan (east-west axis) of the
scan, or a total of 8.5´ in length. Worse, these
stars are saturated, so we do not know their true integrated flux, making it
difficult to anticipate the strength of their associated stripe, spike and
persistence features (see below). Finally, bright stars induce another feature
unique to infrared arrays: latent residual or persistence ghosts. The central
core of a bright star leaves a residual signal after the array has been read
out. The residual persists for several seconds (and for the brightest stars,
many tens of seconds). Thus, a bright star will leave a "trail" of persistence
ghosts as the telescope shifts in declination. All of these bright star
artifacts, many of which strongly resemble galaxies, must be removed to meet
the Level 1 requirements. The 2MASS pipeline and GALWORKS in
particular, remove most of these artifacts
(see below). During the catalog generation phase (i.e., after the pipeline
reductions) we remove (or attempt to remove) the remaining artifacts that
contaminate the database.
Halos, stripes and spikes have a well-determined geometry with respect to
their progenitor, assuming that the integrated flux of the source is known.
GALWORKS determines their extent by measuring
their surface brightness, using limits based on the estimated total flux of
the star and the expected confusion noise as traced by the stellar number
density. Bright stars that saturate (K < 5 mag) may not have
well determined stripe intensity, spike length or persistence coverage.
Diffraction spikes extend several arcminutes for very bright stars; see, for
example, Figure 25,
which shows a magnitude 4 star in a J-band
Atlas image. Note the three horizontal stripes extended and flaring across the
entire 8.5´ of the field, and the persistence
ghosts trailing to the south of the bright star. An even more dramatic example
of spikes, ghosts, halo and stripes is seen in
Figure 26, which shows two
adjacent J-band images with a Ks~ -1
mag star ( Pegasi) straddling the boundary. The
vertical spikes extend well beyond the image boundaries, while the halo
emission completely dominates both images. The persistence ghosts (trailing to
the south of Peg) appear nearly as bright as
field stars. The influence of Peg extends
across scan boundaries as well, making it very difficult to identify and remove
artifacts during the pipeline reductions. Hence, the database is
significantly contaminated with false sources due to very bright stars such as
Peg. Even in the post-processing stage, these
sources present a major clean-up challenge: internal telescope reflections
produce stripe/streak features extending over 1° in radius
from the center of Peg (see
Figure 27, right panel). In the vicinity
of the brightest stars (Ks < 0 mag) in the infrared sky, it may
not be possible to do an adequate artifact removal during the catalog
generation. Fortunately, there are only a handful of these problematic stars
spread throughout the sky.
Most meteor streaks have the unfortunate property of high surface brightness
coupled with severe elongation-similar to large highly inclined spiral
galaxies. Figure 27
demonstrates transient streaks in two different J-band
Atlas images. Note the sharp boundaries for the bright streak and the episodic
flaring for the fainter streak. The latter is, in fact, associated with
Peg
(Figure 26), discussed above. Meteor
streaks are
generally not identified in the pipeline reductions, resulting in false sources
populating the extended source database. Instead, false sources due to
"streaks" are removed during the catalog generation process: the one
identifying feature is that usually multiple detections (in some cases several
hundred sources) occur along the streak which can be identified with simple
database queries and cleaned from the catalogs accordingly.
Bright Stars and Artifacts
Figure 25 | Figure 26 | Figure 27 |
Yet more artifacts are produced by bright to moderately bright stars on the edges of scans, as well as additional artifacts from meteor streaks and background gradients (for example, airglow "bumps" that are not removed). Figure 28 illustrates some of the kinds of artifacts found in the extended source database. The first two (reading left to right) are the result of a "ghost" or "glint", most prominent in J band, to the southwest of the 8 to 9 mag progenitor star. The third column shows a false detection due to a flared diffraction spike from a star on the edge of an Atlas image. The fourth and fifth columns are examples of faint stars or faint galaxies located on or within the boundary of a horizontal stripe or meteor streak. The final column is a faint star boosted in flux by background airglow (note the prominent H-band emission). Many of these artifacts are successfully removed during the catalog generation process. The airglow artifact is probably the most insidious class of false detection since it is so difficult to discriminate from real galaxies or real interstellar nebulosity. The only way to minimize their effect is to avoid data with significant airglow. H-only extended-source detections should be treated with caution.
The 2MASS survey we will have detected over 1.6 million extended sources as faint as ~2 mJy. At 2.2µm, 2MASS will discover galaxies never seen before in the "Zone of Avoidance" where the obscuring effects of Galactic dust and gas limit traditional surveys.
Much of the algorithmic development was driven by the practical need for computational speed and efficiency (e.g., background removal and LCSB detection). As processing power increases over time, it will be possible to implement more sophisticated methods, including more robust methods for detection of low surface brightness galaxies. Moreover, we continue to build and expand the classification "training sets" to improve the performance of the decision tree classifier, while other methods (e.g., supervised neural nets) may also prove to be powerful star-galaxy discriminents. Future improvements will be focused upon reliability (star-galaxy-artifact discrimination) and completeness for SNR sources (e.g., LCSB galaxies).
In the future we will discuss in detail the completeness and reliability that can be expected for the release catalogs. The scientific content is assessed with analysis of the source counts and redshift distribution, size and orientation distributions, JHKs colors, and coordinate position accuracy. Finally, we will discuss a method by which 2MASS extended sources may be used to identify and characterized galaxy clusters out to z ~ 0.2.
Figure 28 |
[Last Updated: 2003 Mar 10; by T. Jarrett, T. Chester, S. Schneider, S. Van Dyk, & R. Cutri]
